IEC 62056-21
Bluetooth
1000mA Li-Po Battery
As Virtual Serial Port
N36 Magnetic Force

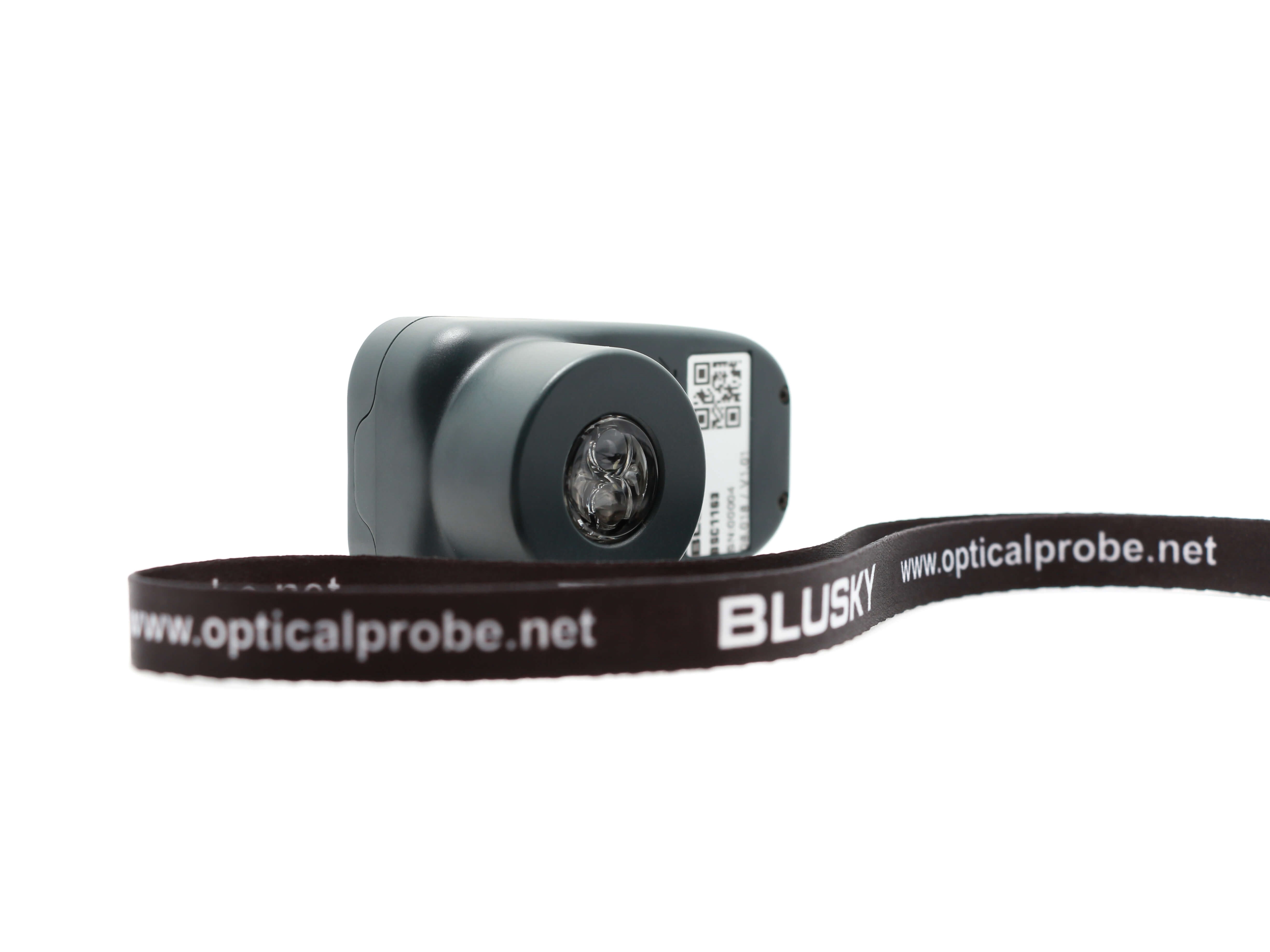

Use Same Optical Probe for all IEC Meters
Led Flashlight

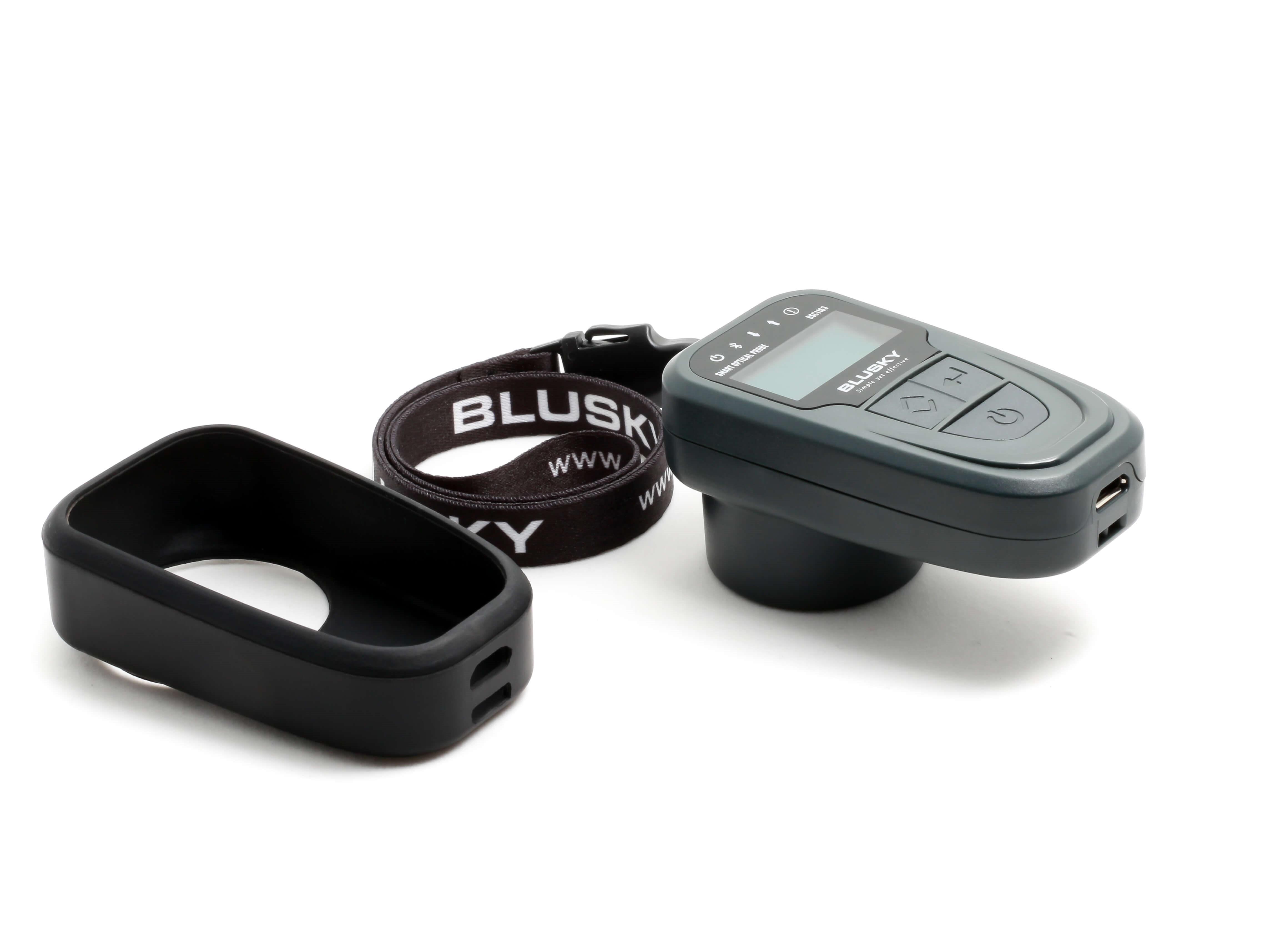

Silicone Protector
5 Status Leds
OLED Display
USB 2.0
Starting Meter Reading with Button
Smart Reading Feature

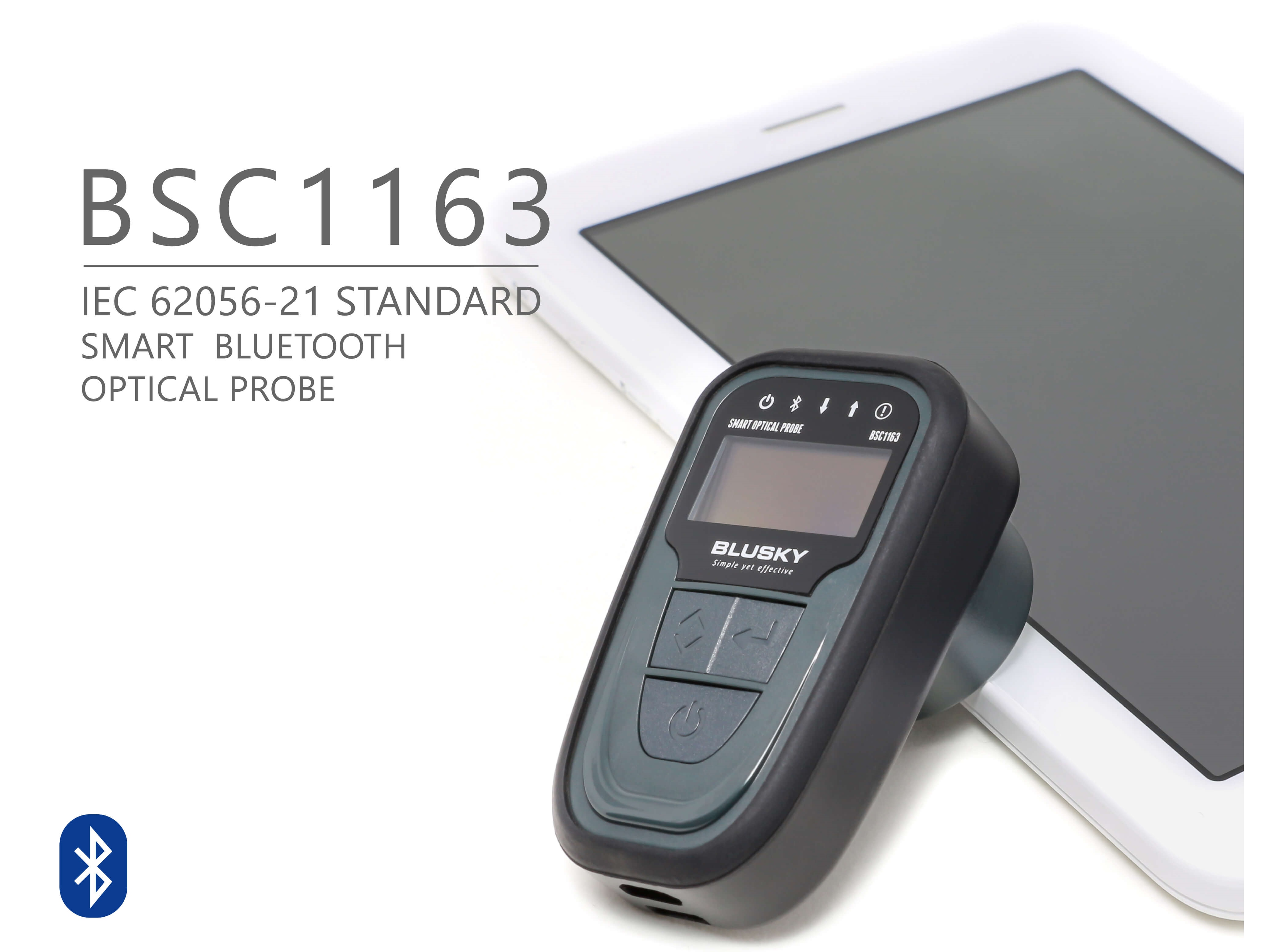

BSC1163

Delivery in four or six weeks

         BSC1163 smart bluetooth optical probe is distinguished from its competitors by its meter reading and recording capability without the need of an external hand terminal. You can read approximately 500 electricity meters without using the handheld terminal and then transfer data to the computer. It complies with Bluetooth 2.1 + EDR and IEC62056-21 standard. It uses to read closely the electricity meters with portable computers, hand held terminals, tablets and smart phones. You can use it with Windows, Windows Mobile, Android and IOS operating systems. You can follow all processes with 5 status leds and OLED display on it. BSC1161 creates a virtual com port on your portable devices. You can easily start using it with the software that will be prepared for it. Our optical ports contain N36 or N38 magnets and are very well integrate with the electricity meters. Thanks to low energy consumption, you can read 5000 electricity meters in one charge. With an additional battery this number can be up to 10.000. You can easily charge the optical probe with your computer or 1A / 5V power supply. You can update the firmware and configure all settings with USB. With our quality sensors and amplifiers, you can read almost all electricity meters of the relevant standard. It provides transparent communication and IEC62056-21 Mode C solution together. It automatically switches the communication speed according to IEC62056-21 Mode C standard. It is resistant to falling thanks to external silicone protection. It helps you reach your electricity meter with led torch feature in dark working areas . The wristband prevents the optical probe from falling from your hand. With the buttons on it you can make all the settings and start the meter reading process.

Battery Feature



 : 1000mA / 3.7V LiPo Battery. 10.000 Meters Reading Capacity with Single Charge

Weight



 : 60Gr. (135 Gr. Including box contents)

Diameter



 : 31,5 mm

Communication Interface



 : Bluetooth 2.1 + EDR

Wavelength



 : ~ 900 nm

Magnetic Holding Force



 : N36 ( N38 Optional )

Led Flashlight



 : White Led, Auto Power Off

Battery Charging

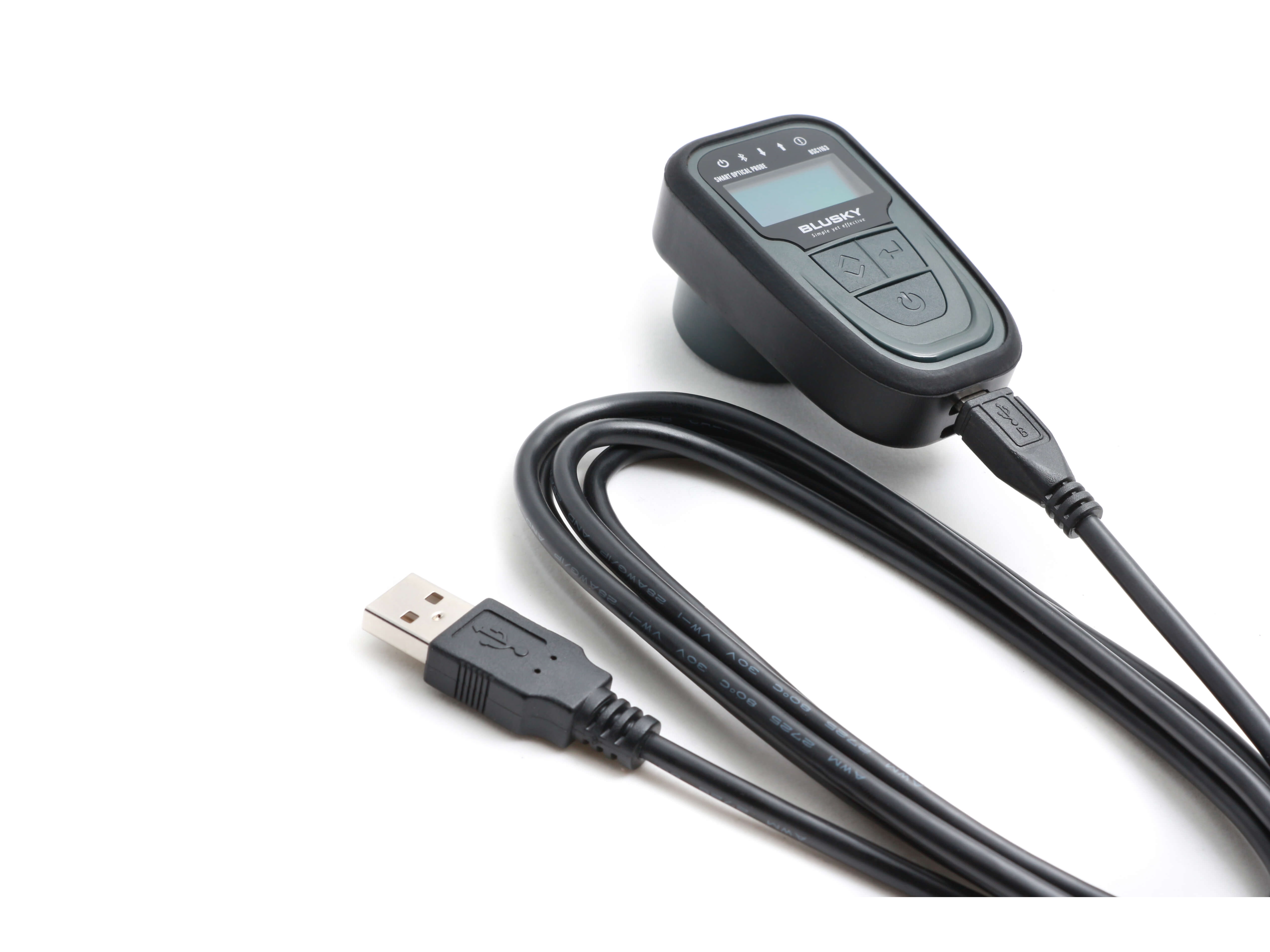

 : It can be charge via micro USB cable. 100mA - 500mA power supply is enough to standard charging. 1500mA power supply is required for fast charging. Product box include charging cable. But not include charging adapter.

Additional Memory



 : 4 mbyte internal flash memory

Supported Custom Standards



 : IEC 62056-21 (formerly IEC 1107)

Indicators



 : 5 Leds (Power, Bluetooth, TX Data, Rx Data and Status)

Height



 : 33,5 mm

PC Com. Port



 : USB 2.0 / Micro USB Port

Max. Communication Speed



 : Bluetooth Link 9600 bps / Optical Link 38.400 bps

Buttons



 : Control with 3 buttons (Power / Up-Down / Enter)

Display



 : 128x64 pixel OLED Display

Smart Communication

  : Ability to read and save 500 electricity meters data without hand terminal

Click the link on the right to download the product brochure.

Product Brochure
  • Used to read the index and load profile values of IEC62056-21 standard electricity meters by Computer

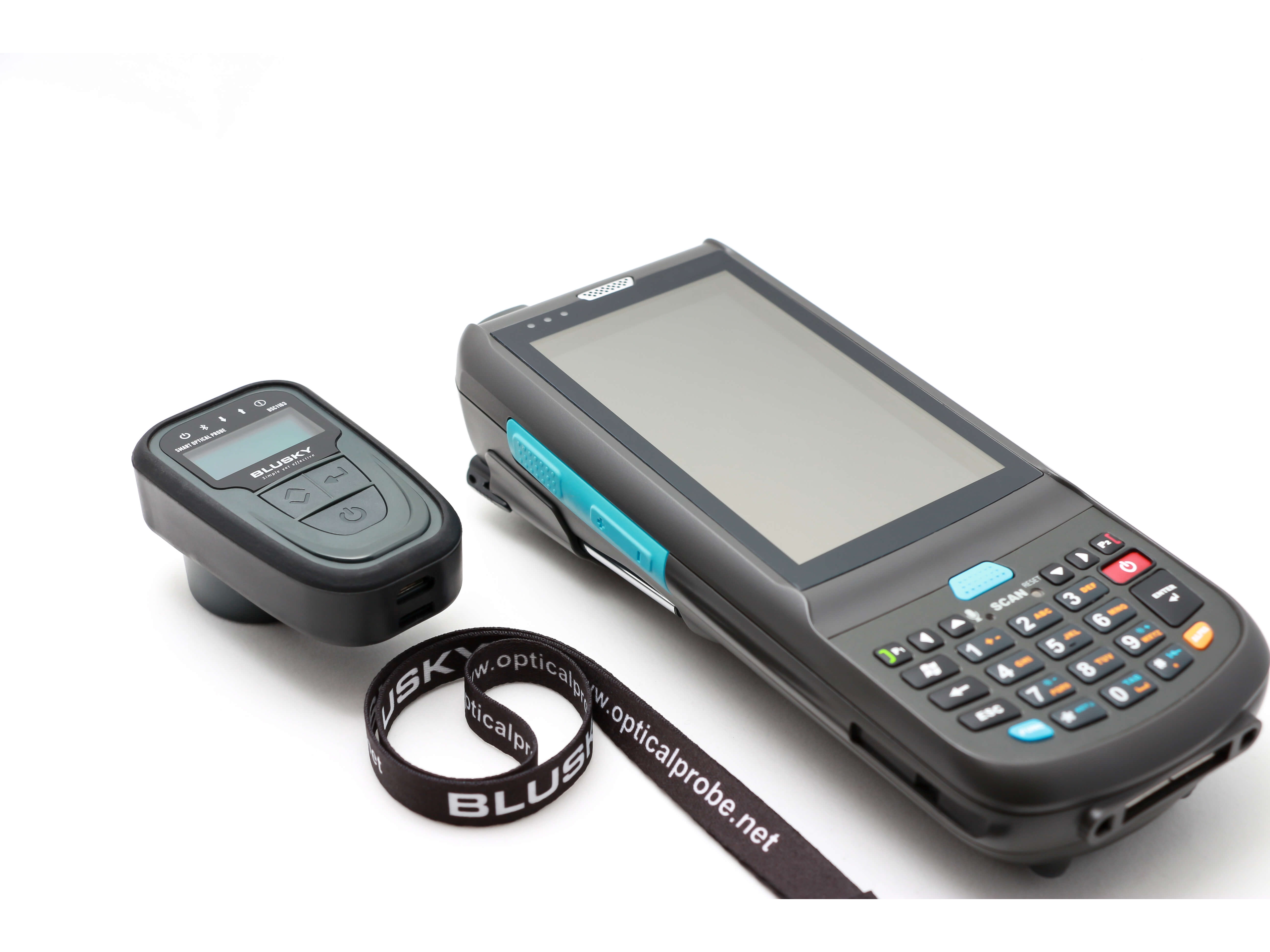

  • Used to read electricity meters with Handheld Terminals
  • Used for closely reading of electricity meters with Smart Phones and Tablets
  • It is used to make settings of the electricity meters with appropriate softwares
  • Used for measuring, testing and calibration on Electricity Meter Test Tables
  • Used in campus type areas such as Shopping Centers and Organized Industrial Zone
  • Used in areas where energy stakeholders such as collective housing and hotels are more common

         BSC1163 smart bluetooth optical probe is distinguished from its competitors by its meter reading and recording capability without the need of an external hand terminal. You can read approximately 500 electricity meters without using the handheld terminal and then transfer data to the computer. It complies with Bluetooth 2.1 + EDR and IEC62056-21 standard. It uses to read closely the electricity meters with portable computers, hand held terminals, tablets and smart phones. You can use it with Windows, Windows Mobile, Android and IOS operating systems. You can follow all processes with 5 status leds and OLED display on it. BSC1161 creates a virtual com port on your portable devices. You can easily start using it with the software that will be prepared for it. Our optical ports contain N36 or N38 magnets and are very well integrate with the electricity meters. Thanks to low energy consumption, you can read 5000 electricity meters in one charge. With an additional battery this number can be up to 10.000. You can update the firmware and configure all settings with USB. With our quality sensors and amplifiers, you can read almost all electricity meters of the relevant standard. It provides transparent communication and IEC62056-21 Mode C solution together.  It helps you reach your electricity meter with led torch feature in dark working areas . The wristband prevents the optical probe from falling from your hand. With the buttons on it you can make all the settings and start the meter reading process.

Buy Now

BSC1163-1

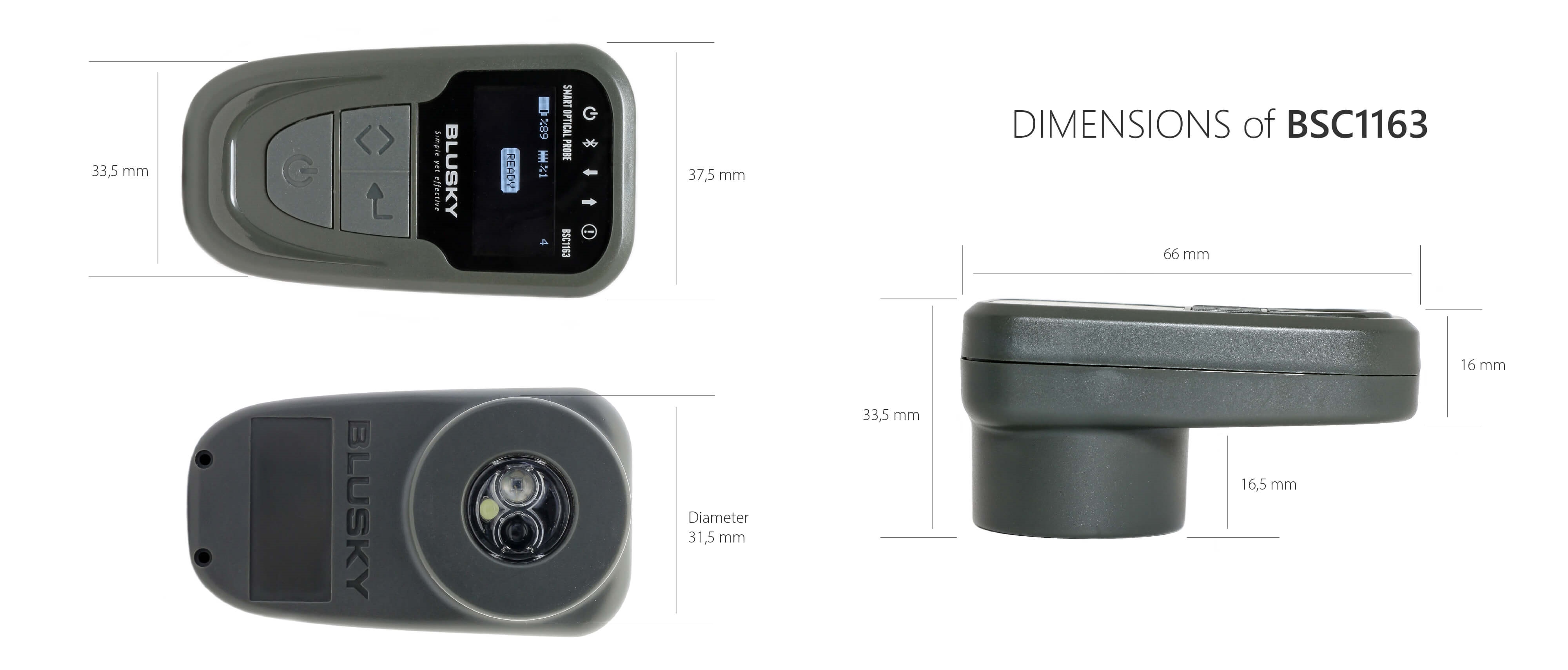

BSC1163 dimensions
