GSM/GPRS
Firmware Update Remotely
USB 2.0
-30ºC , +70ºC
UL94V0 - IP54
Double RS485 Ports
RTC
Super Capasitor
3 Inputs & 2 Relays
50-465VAC / 80-700VDC Wide Range Power Supply

BLU C3/BSC9253R3

Delivery in a week

BLU C3 / BSC9253R3 Our GSM / GPRS Modem is a top-midrange model that offers 220VAC and higher power supply options. Additionally to sub model it provides 2nd and 3rd Input Port, 2nd Relay Output and Super Capasitor features. Thanks to the super capacitor, you will immediately notice your energy interruptions. Our product, which can provide 6-8 kV impulse resistance, has a power supply that is customized for heavy field conditions. It is an industrial type GSM / GPRS modem designed for use in Smart Grids that offering remote access. Also, It may be preferred for use in different areas of industry. Our products are that meets the specifications of EMRA for Turkey. It supports to IEC 62056-21, DLMS / COSEM, and MODBUS RTU standards. Sealable cover prevents unwanted access and removing from panel. The supply voltage is in the range of 50-465VAC. It provides 2x RS485 port, 2x Relays , 3x Input ports , Real Time Clock (RTC) and Super Capasitor. Modems that can be used in Server or Client mode. You can update the firmware or settings of your modem closely or remotely. You can track all processes with 11 leds. You can find all the documents and utilities belonging to our modems on this page and buy them without leaving our website.

Power Supply



 : 50-465VAC / 80-700VDC Wide Range

Maximum Current



 : 300 mA /220VAC

GPRS Band



 : Quad Band (850/900/1800/1900 Mhz)

Running Mode



 : Server and Client Mod Supported

Com. Ports



 : 2 Unit Half Duplex RS485 Comm. Port

Temperature Range



 : -30ºC to + 70ºC Operation, -40ºC to + 80ºC Storage

Protection Class



 : IP54 Environmental Conditions and UL94-V0 Non-Flammability Class

Inputs



 : 3 Unit 10-48V DC, 5000V Isolated Input

Outputs



 : 2 Unit 250V / 10A, NO Contact Relay Output

Super Capasitor



 : 1-5 Min. Can Run Modem and Report Energy Interruption Information

Sealable Terminal Cover



 : Semi Transparent Terminal Cover With Screw

Installation



 : 35 mm. DIN Rail and Screw Mounting Option

Rated Current



 : 30 mA /220VAC

Impulse Res.



 : 8000 V

GPRS Class



 : Multi-Slot Class 10 (4 Down; 2 Up; 5 Total)

Port Isolation



 : 15kV ESD Protected

PC Com. Port



 : USB 2.0 Micro USB Socket

Supported Custom Standards



 : IEC62056-21, DLMS/COSEM and MODBUS RTU

Weight



 : 395 Gr.

Antenna



 : 3dBi GSM / GPRS Antenna with 3 mt. Wired, Magnet Based and 50Ω SMA Connector

RTC



 : High precision Real Time Clock with battery



Smart Communication



 : Not Supported

Additional Memory



 : Not Supported

Indicators



 : 11 Units Status and Process Tracking Leds

Click the link on the right to download the product brochure.

Product Brochure


  • Automatic Meter Reading (AMR) and Meter Automation Projects
  • Electricity Distribution Companies' AMI/AMR * Projects
  • Organized Industrial Zones' AMI/AMR * Projects
  • Energy Monitoring Projects of Factories
  • Shopping Centers' AMI/AMR * Projects
  • Free Consumer consumption tracking and billing projects
  • Cloud-Based Individual Energy Monitoring Solutions (with Gridmaster Energy Management Software)
  • Compensation Tracking Projects
  • Waste Water Management Projects
  • Lighting Management Projects
  • Solar Power Plant Monitoring and Control Projects
  • Wind Power Plants Monitoring and Control Projects
  • Natural Gas Stations Monitoring and Control Projects
  • Meteorological Monitoring and Control Projects
  • Agricultural Irrigation and Monitoring Projects
  • Electricity, Water, Heat and Natural Gas Tracking and Billing Projects on Public Housing
  • Prepayment Systems



* AMI/AMR: Advanced Metering Infrastructure / Automatic Meter Reading System



BLU C3 / BSC9253R3 Our GSM / GPRS Modem is a top-midrange model that offers 220VAC and higher power supply options. Additionally to sub model it provides 2nd and 3rd Input Port, 2nd Relay Output and Super Capasitor features. Thanks to the super capacitor, you will immediately notice your energy interruptions. Our products are that meets the specifications of EMRA for Turkey. It supports to IEC 62056-21, DLMS / COSEM, and MODBUS RTU standards. The supply voltage is in the range of 50-465VAC. It provides 2x RS485 port, 2x Relays , 3x Input ports , Real Time Clock (RTC) and Super Capasitor. Modems that can be used in Server or Client mode. You can update the firmware or settings of your modem closely or remotely. You can track all processes with 11 leds. You can find all the documents and utilities belonging to our modems on this page and buy them without leaving our website.

Buy Now

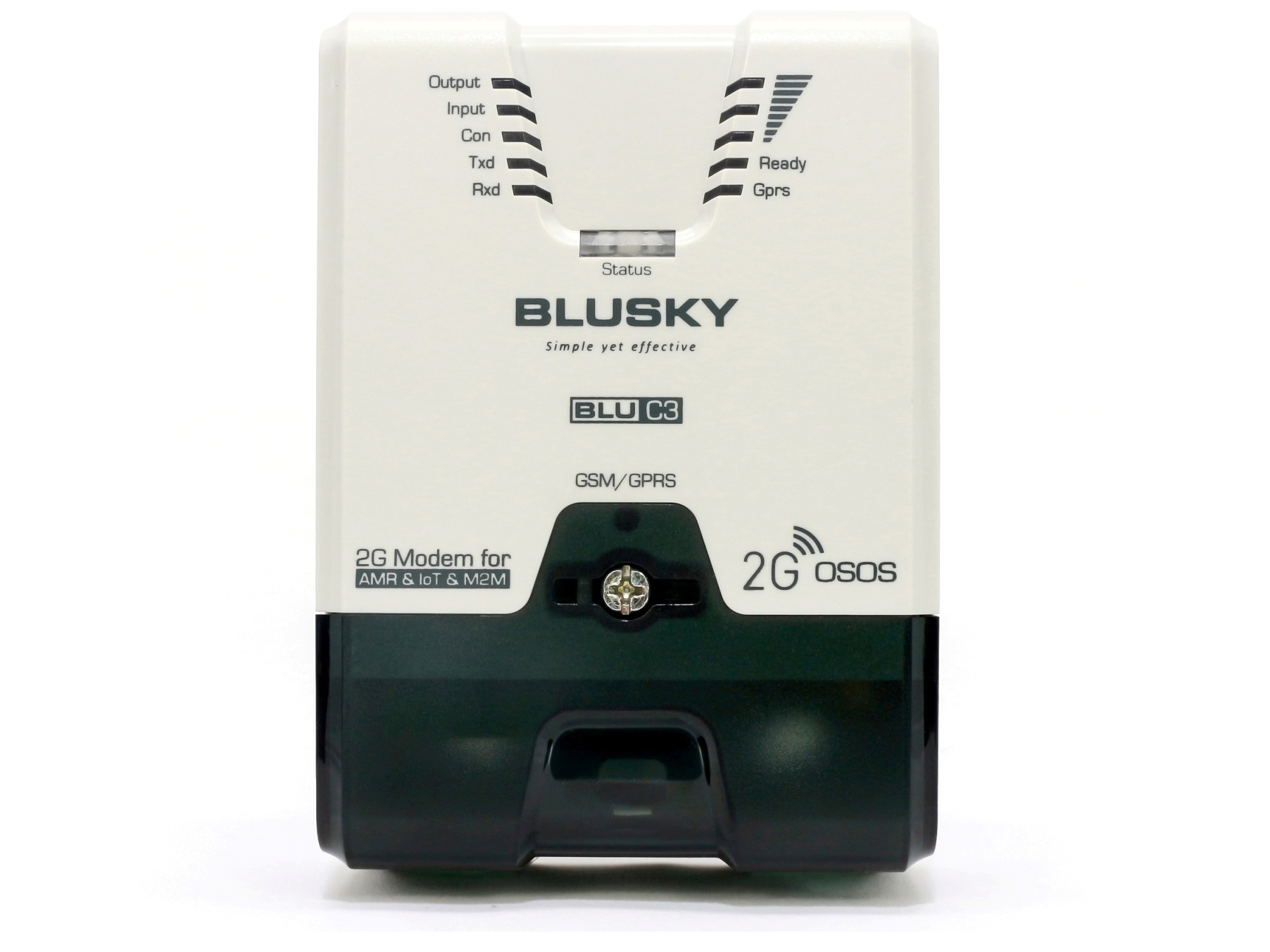

blu c3 pic3

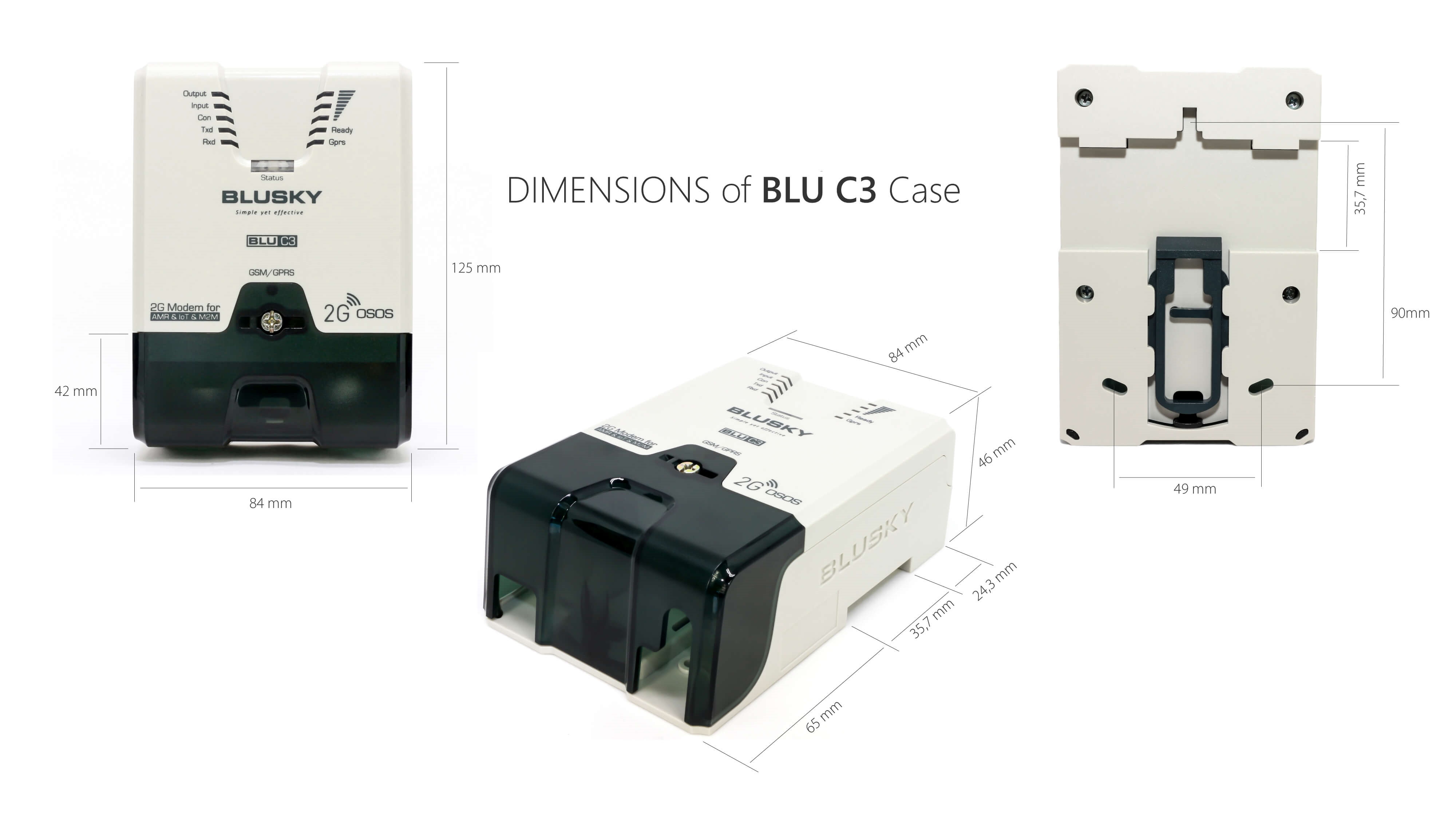

blu c3 dim

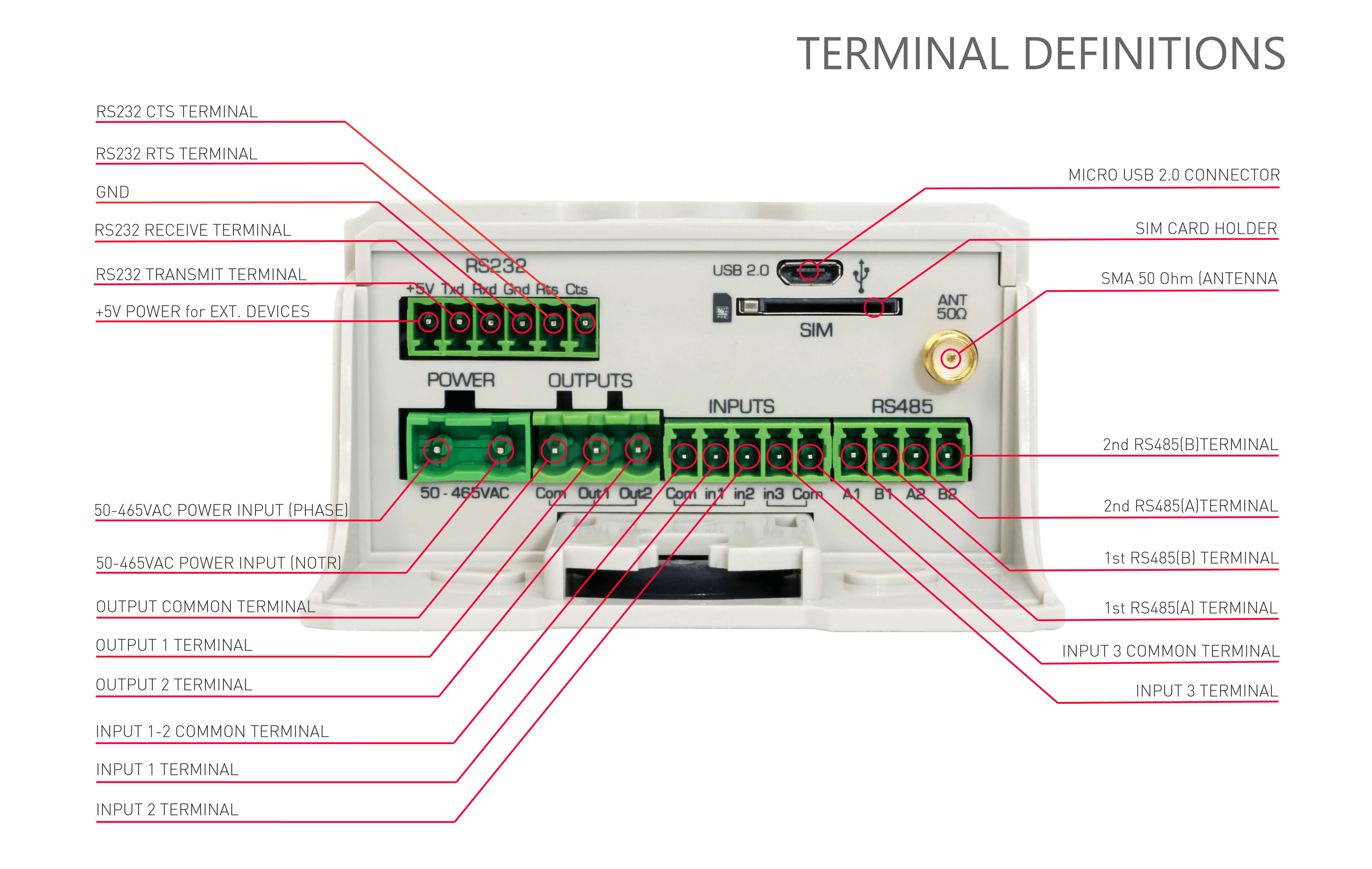

C3 Terminal Eng 220V
