GSM/GPRS
Firmware Update Remotely
USB 2.0
-30ºC , +70ºC
UL94V0 - IP54
1 Input & 1 Output
Double RS485 Ports
RTC
85-265VAC Power Supply

BLU C2/BSC9252R2

Delivery in a week

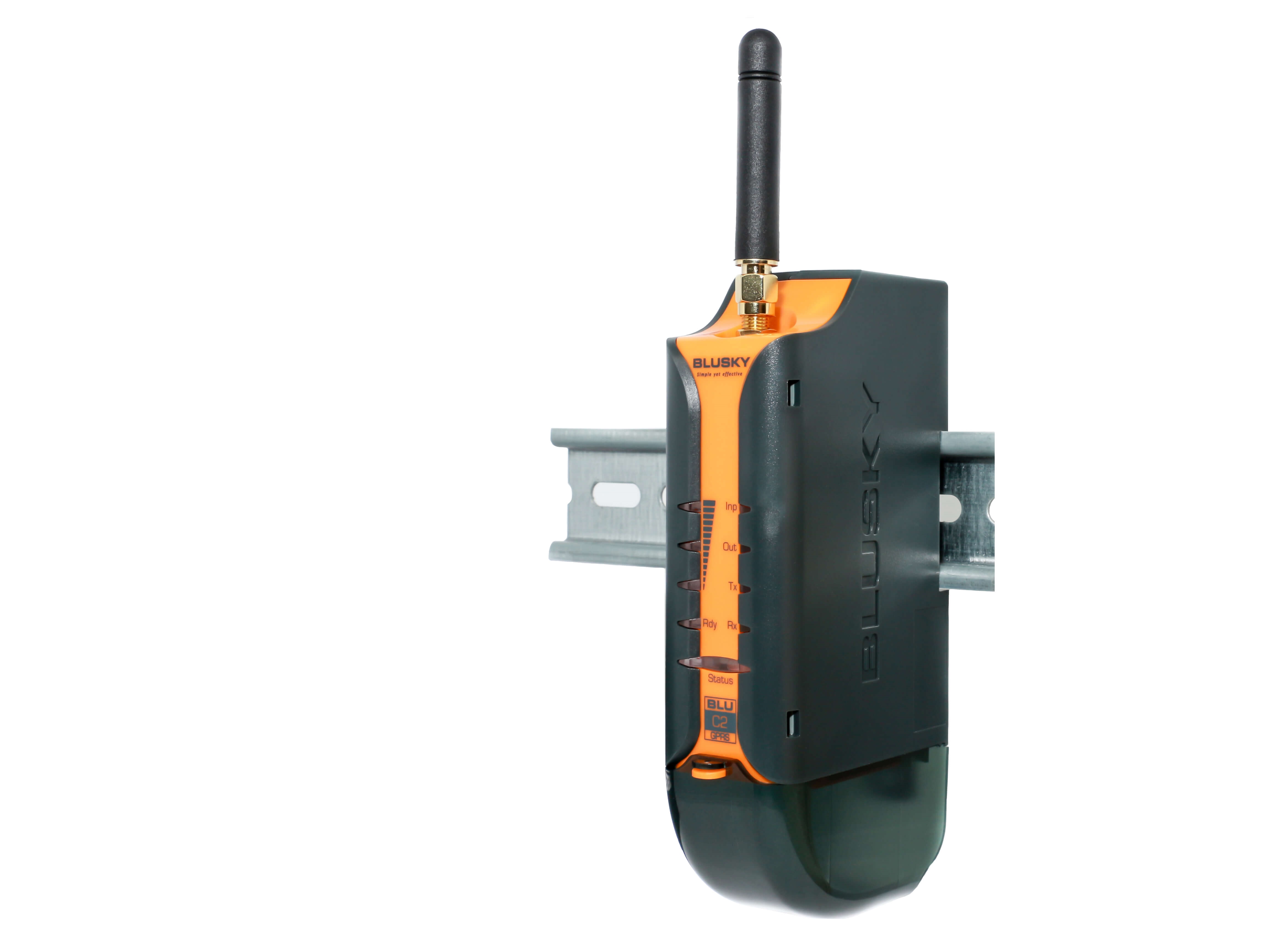

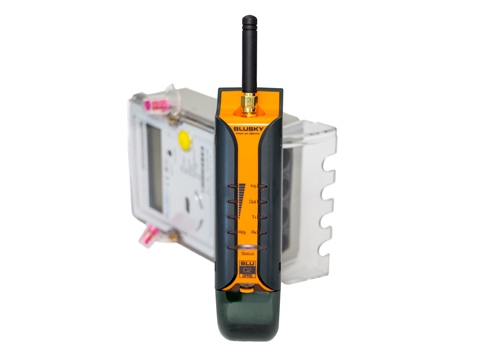

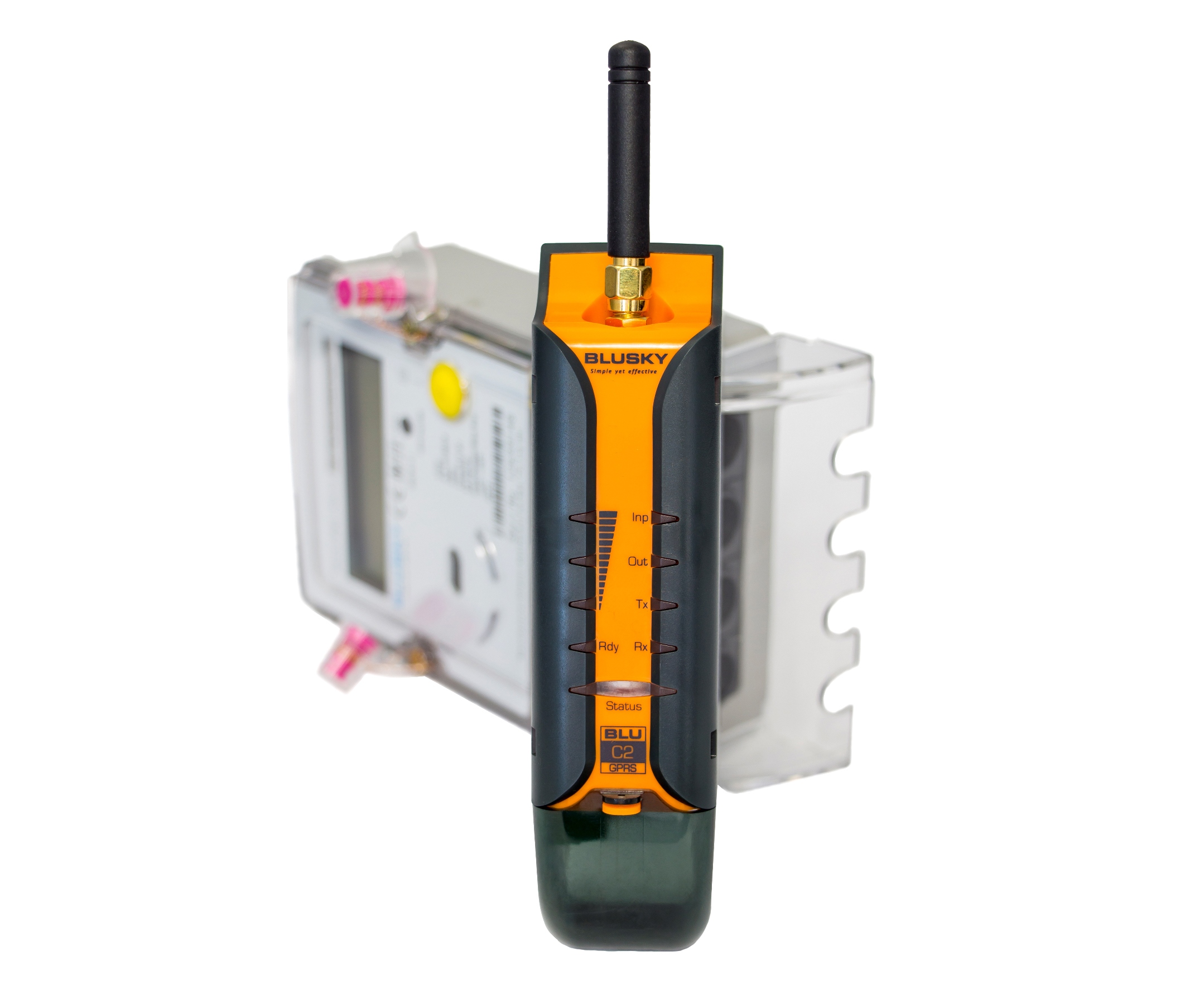

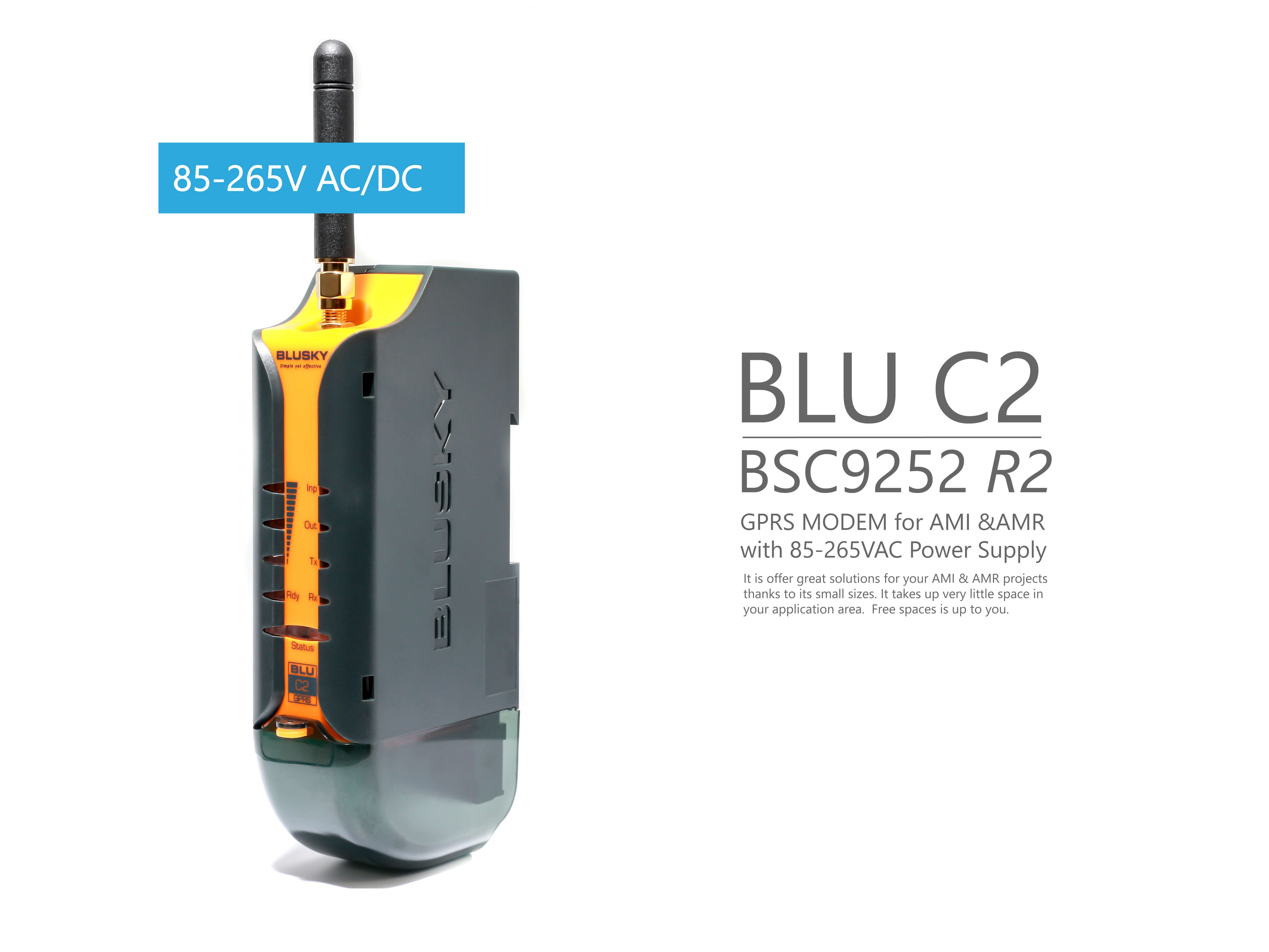

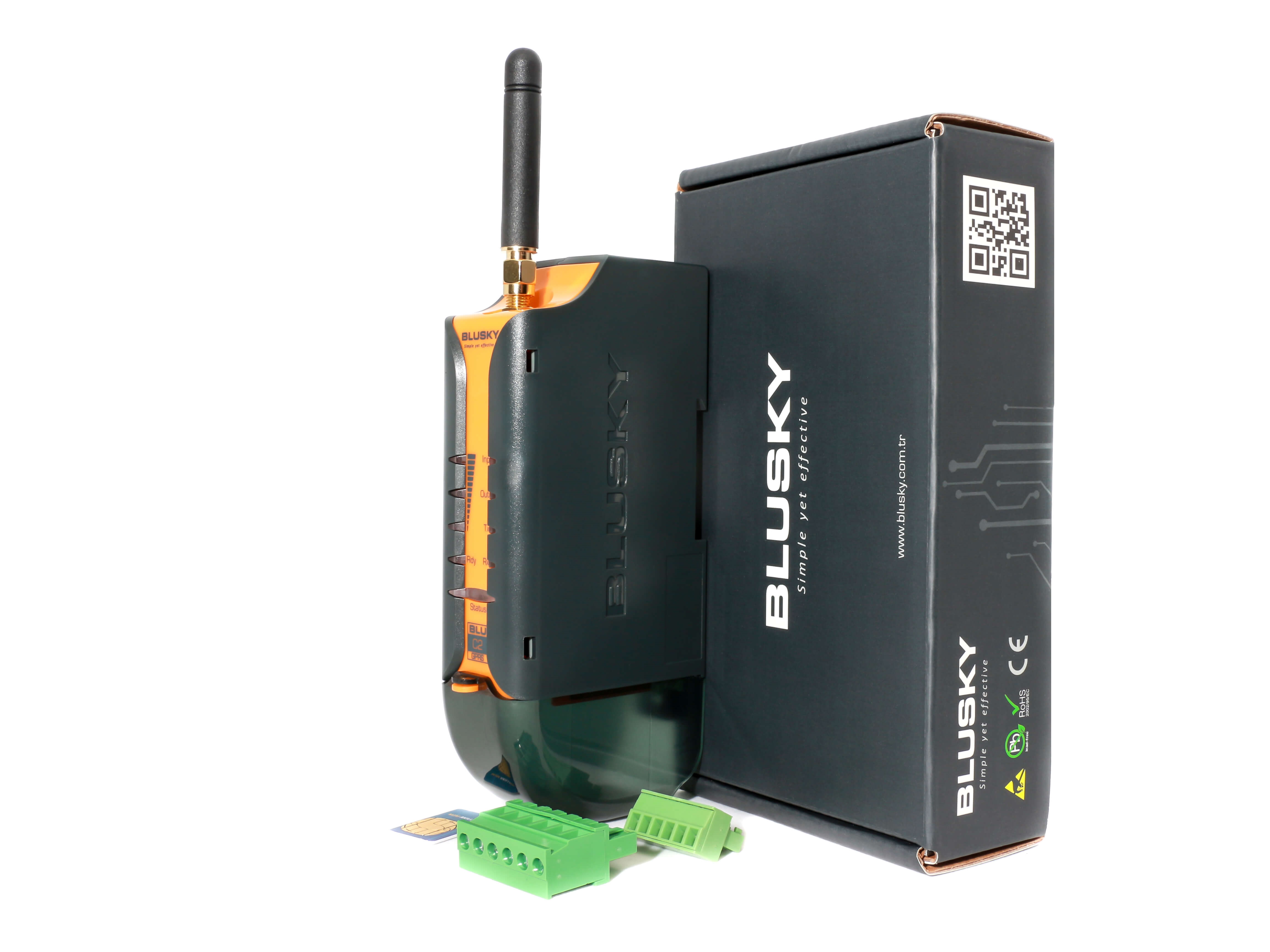

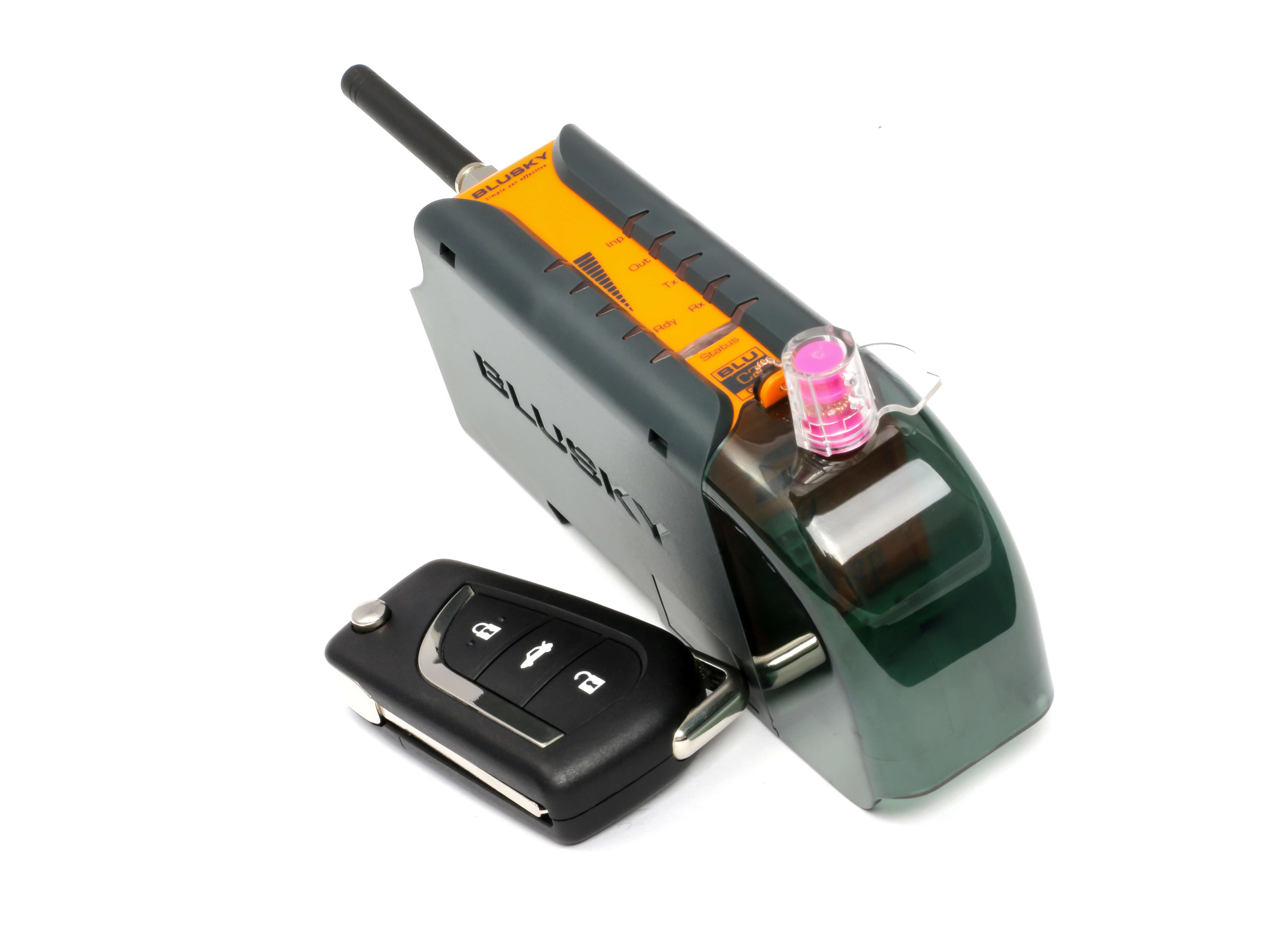

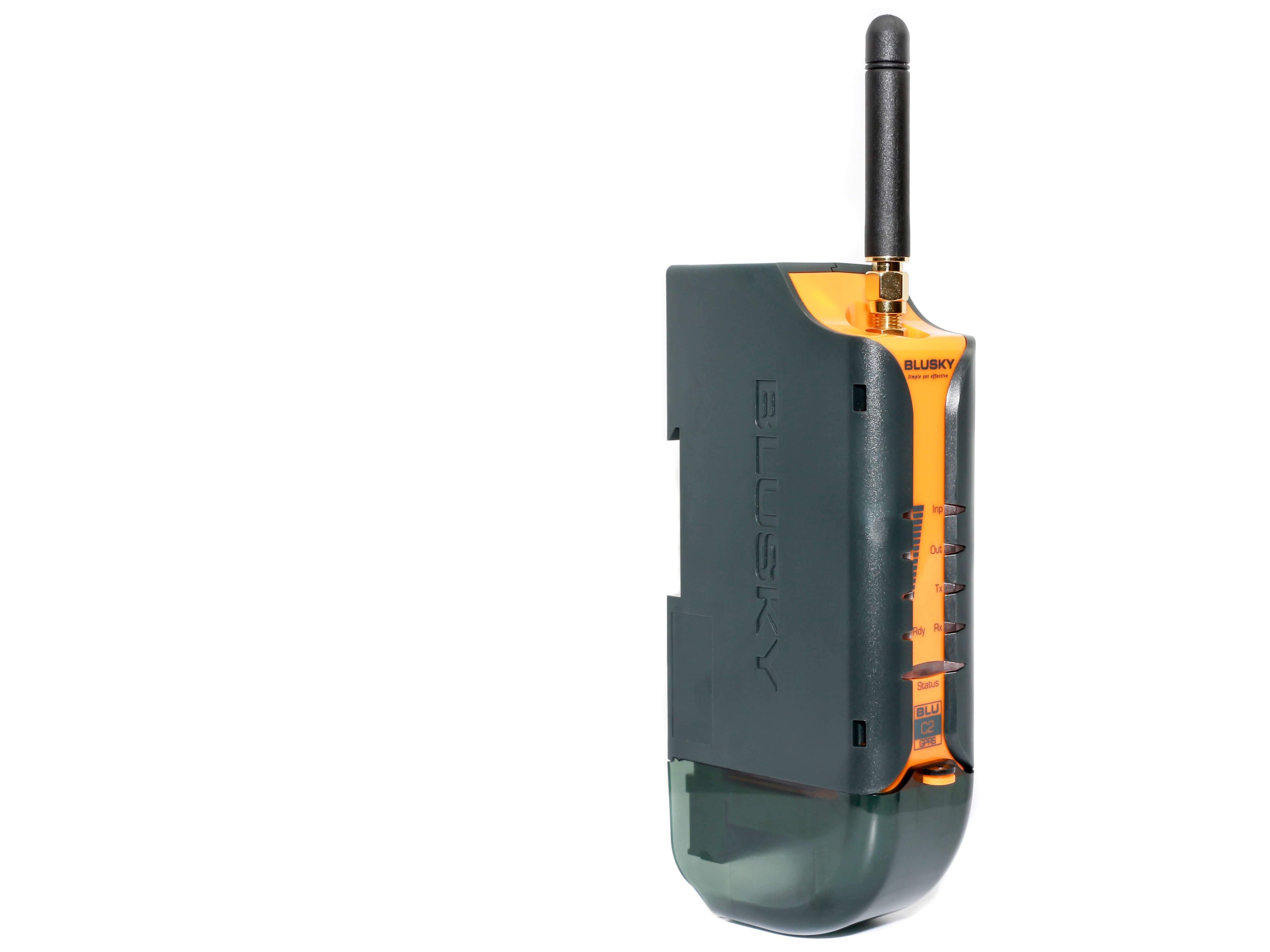

BLU C2 / BSC9252R2 Our GSM / GPRS Modem is a midrange model that offering 220VAC power supply. Additionally to sub model it provides 2nd RS485 Port and Real Time Clock (RTC) features. It is an industrial type GSM / GPRS modem designed for use in Smart Grids that offering remote access. Also, It may be preferred for use in different areas of industry. It supports to IEC 62056-21, DLMS / COSEM, and MODBUS RTU standards. Thanks to small dimensions it takes up little space and provides ease of installation. The supply voltage is in the range of 85-265VAC. It provides 2x RS485 port, 1x Relay, 1x Input port and Real Time Clock(RTC) features. Modems that can be used in Server or Client mode. You can update the firmware or settings of your modem closely or remotely. You can track all processes with 9 leds. You can find all the documents and utilities belonging to our modems on this page and buy them without leaving our website.

Power Supply



 : 85-265VAC / 110-320VDC

Maximum Current



 : 250 mA /220VAC

GPRS Band



: Quad Band (850/900/1800/1900 Mhz)

Running Mode

 : Server and Client Mod Supported

Com. Ports



 : 2 Unit Half Duplex RS485 Comm. Port

Temperature Range



  : -30ºC to + 70ºC Operation, -40ºC to + 80ºC Storage

Protection Class



 : IP54 Environmental Conditions and UL94-V0 Non-Flammability Class

Inputs

  : 1 Unit 10-48V DC, 5000V Isolated Input

Outputs



 : 1 Unit 250V / 5A, NO Contact Relay Output

Super Capasitor



 : Super Capacitor Not Supported

Sealable Terminal Cover



 : Semi Transparent Terminal Cover

Installation



 : 35 mm. DIN Rail and Screw Mounting Option

Rated Current



 : 25 mA /220VAC

Impulse Res.



: 6000V

GPRS Class

  :  Multi-Slot Class 10 (4 Down; 2 Up; 5 Total)

Port Isolation



: 15kV ESD Protected

PC Com. Port

: USB 2.0 Mini USB Socket

Supported Custom Standards



 : IEC62056-21, DLMS/COSEM and MODBUS RTU

Weight



 : 230 Gr.

Antenna



 : 3dBi GSM / GPRS Antenna with ,3 mt. Wired, Magnet Based and 50Ω SMA Connector

RTC



 : High precision Real Time Clock (without battery)

Smart Communication



 : Not Supported

Additional Memory



 : Not Supported

Indicators



 : 9 Units Status and Process Tracking Leds

Click the link on the right to download the product brochure.

Product Brochure


  • Automatic Meter Reading (AMR) and Meter Automation Projects
  • Electricity Distribution Companies' AMI/AMR * Projects
  • Organized Industrial Zones' AMI/AMR * Projects
  • Energy Monitoring Projects of Factories
  • Shopping Centers' AMI/AMR * Projects
  • Compensation Tracking Projects
  • Waste Water Management Projects
  • Lighting Management Projects
  • Solar Power Plant Monitoring and Control Projects
  • Wind Power Plants Monitoring and Control Projects
  • Natural Gas Stations Monitoring and Control Projects
  • Meteorological Monitoring and Control Projects
  • Agricultural Irrigation and Monitoring Projects
  • Electricity, Water, Heat and Natural Gas Tracking and Billing Projects on Public Housing
  • Prepayment Systems


    * AMI/AMR: Advanced Metering Infrastructure / Automatic Meter Reading System

BLU C2 / BSC9252R2 Our GSM / GPRS Modem is a midrange model that offering 220VAC power supply. Additionally to sub model it provides 2nd RS485 Port and Real Time Clock (RTC) features. It supports to IEC 62056-21, DLMS / COSEM, and MODBUS RTU standards. Thanks to small dimensions it takes up little space and provides ease of installation. The supply voltage is in the range of 85-265VAC. It provides 2x RS485 port, 1x Relay, 1x Input port and Real Time Clock(RTC) features. You can track all processes with 9 leds. You can find all the documents and utilities belonging to our modems on this page and buy them without leaving our website.
