ANSI C12.18 Type 2
RS 232
N36 Magnetic Force
3 mt. Cable Length
Use Same Optical Probe for all ANSI Meters

BSC1211

Immediate Delivery

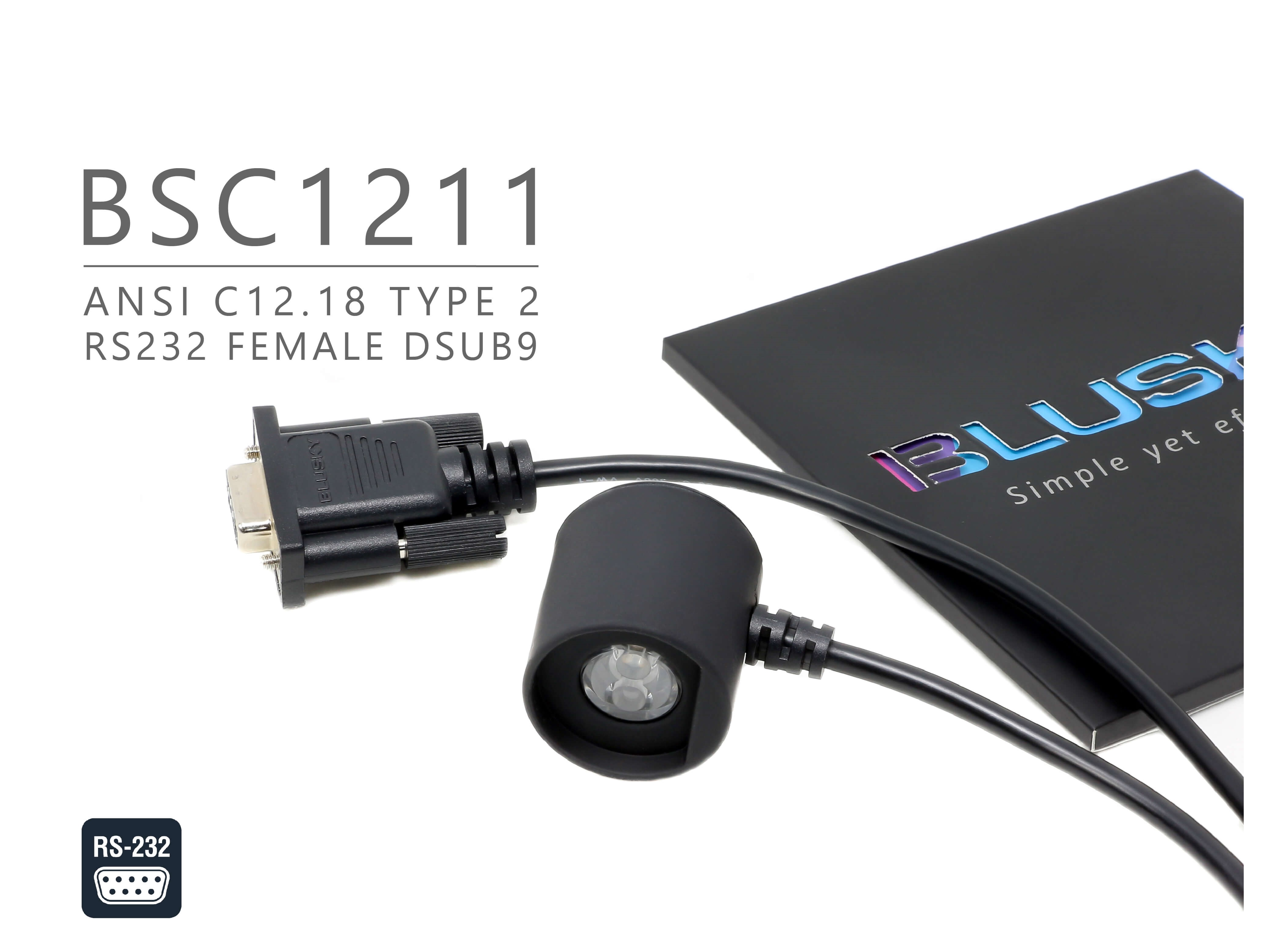

             This is an Optical Probe with an RS232 electrical interface and compliant with ANSI C12.18 Tip 2 standard. It is especially used to read electricity meters closely with laptop computers and to remotely read with modem which meters without electrical communication port. Our optical probes contain N36 or N38 magnets and are very well integrated with the meters. You can also use our optical probes with our GSM / GPRS modems and Serial Device Servers. Your optical probes are powered via the RS232 port on your computer or Modems. Does not require an external power supply. With our quality sensors and amplifiers, you can read almost all meters of the relevant standard.

Power Supply

: 3.3 - 5VDC (Powered from RS232 port, no external power required)

Weight

: 125 Gr. (210 Gr. Including box contents)

Diameter

: Optical Side: 31.3 mm.  /  Top Cover Side: 32,5 mm.

Communication Interface



: RS232 / DSUB9 Female Socket

Wavelength



 : ~900 nm.

Magnetic Holding Force



: N36 ( N38 Opt. )

Supported Custom Standards



: ANSI C12.18 Type 2

Indicators

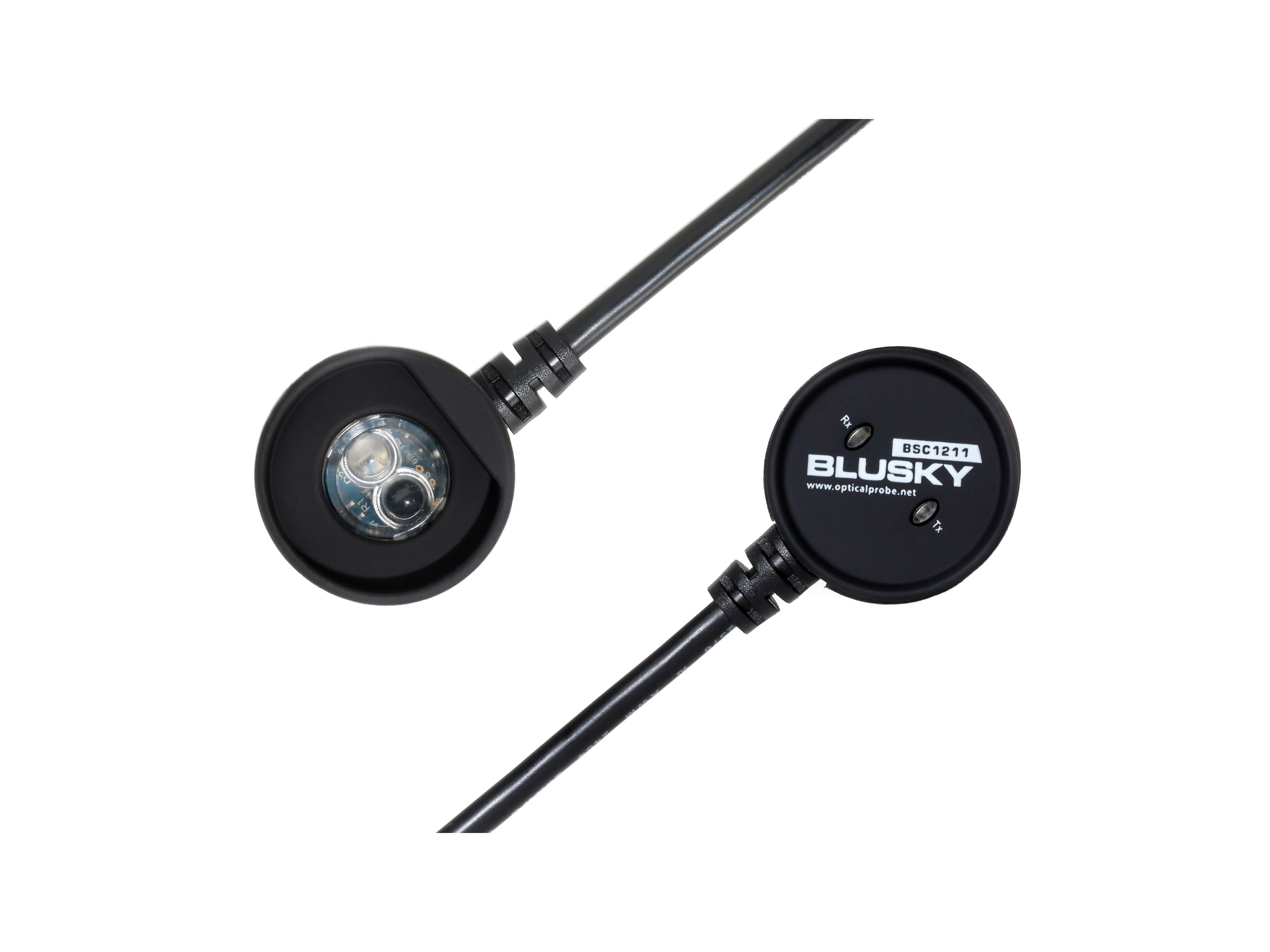

: You can track the communication with 2 LEDs

Height

: Total: 34 mm.  /  Up to the cable: 20 mm.

Cable Length

: ~3 mt

Max. Communication Speed



 : 38.400 bps

Click link on the right to download the product brochure.

Product Brochure

In order to prevent mistakes that may arise from reading of electricity meters by eye;

  • It is used to read the index and load profile values of ANSI C12.18 Type 2 standard electricity meters by laptop computer
  • Used to read electricity meters with handheld terminals
  • Creates an interface for remotely reading meters that do not have a communication port
  • It is used to make settings of the electricity meters with appropriate software
  • Used for measuring, testing and calibration in Electricity MeterTest Tables
  • Can be used in prepayment meter systems
  • Used in campus type areas such as Shopping Centers and Organized Industrial Zone
  • Used in areas where energy stakeholders such as collective housing and hotels are more common

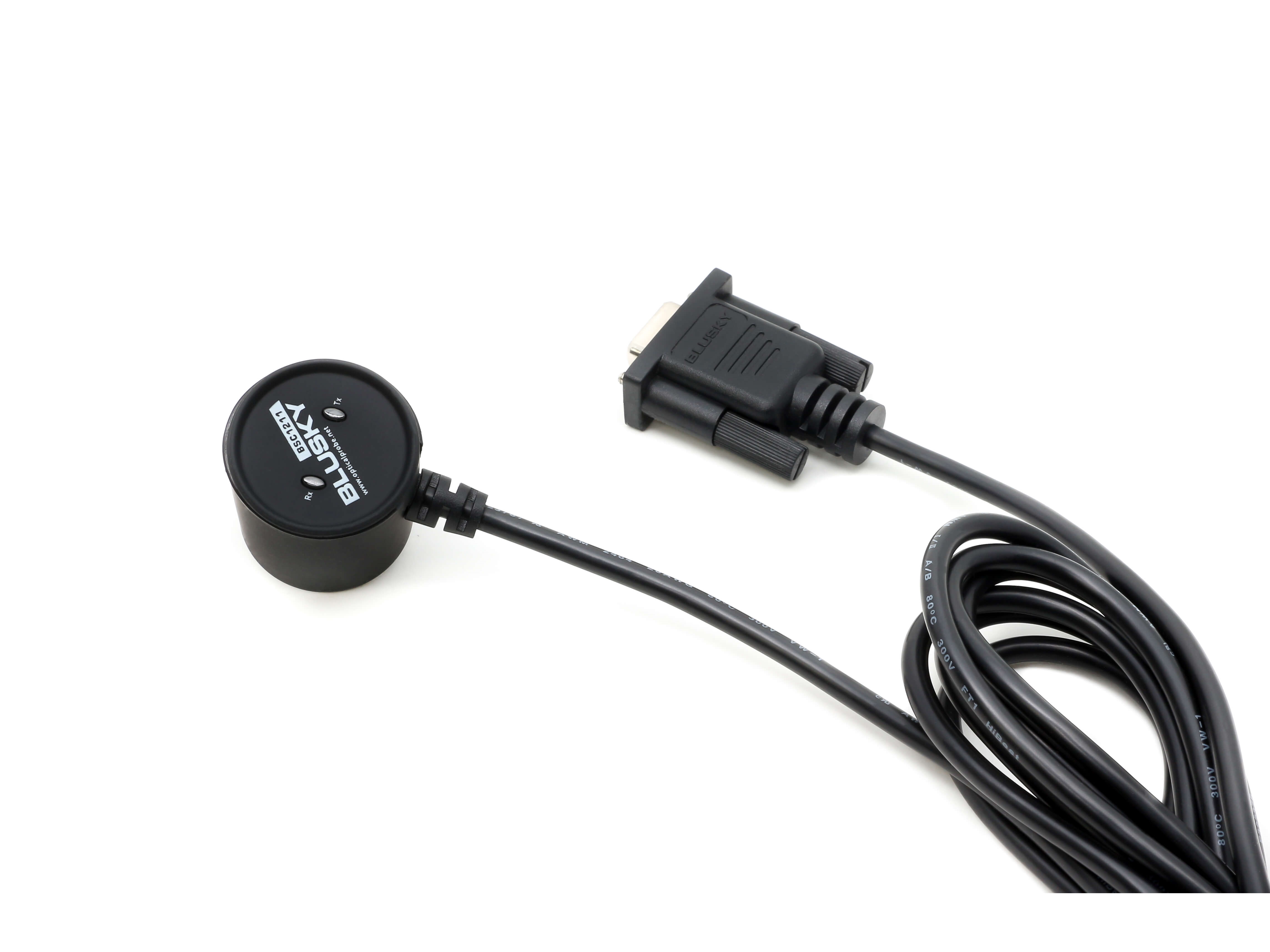

         It is an optical probe with RS232 electrical interface, which can be used in electricity meters conforming to ANSI C12.18 Type 2 standard. Aproximetely 3 mt. cable length. Optical Probe equipped with a female DSUB 9 connector and is connected to the Optical Probe with a product-specific and robust cable. It is especially used to read electricity meters closely with laptop computers and to remotely read with modem which meters without electrical communication port. Our optical probes contain N36 or N38 magnets and are very well integrated with the meters.

          You can also use our optical probes with our GSM / GPRS modems and Serial Device Servers. You can follow the data transmission with 2 leds on our optical probes. They are powered via the RS232 port on your computer or Modems. Does not require an external supply. With our quality sensors and amplifiers, you can read almost all electricity meters of the relevant standard.

Buy Now

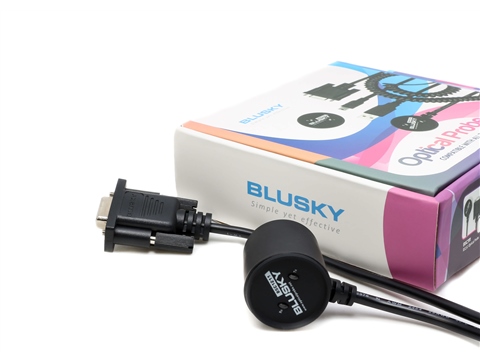

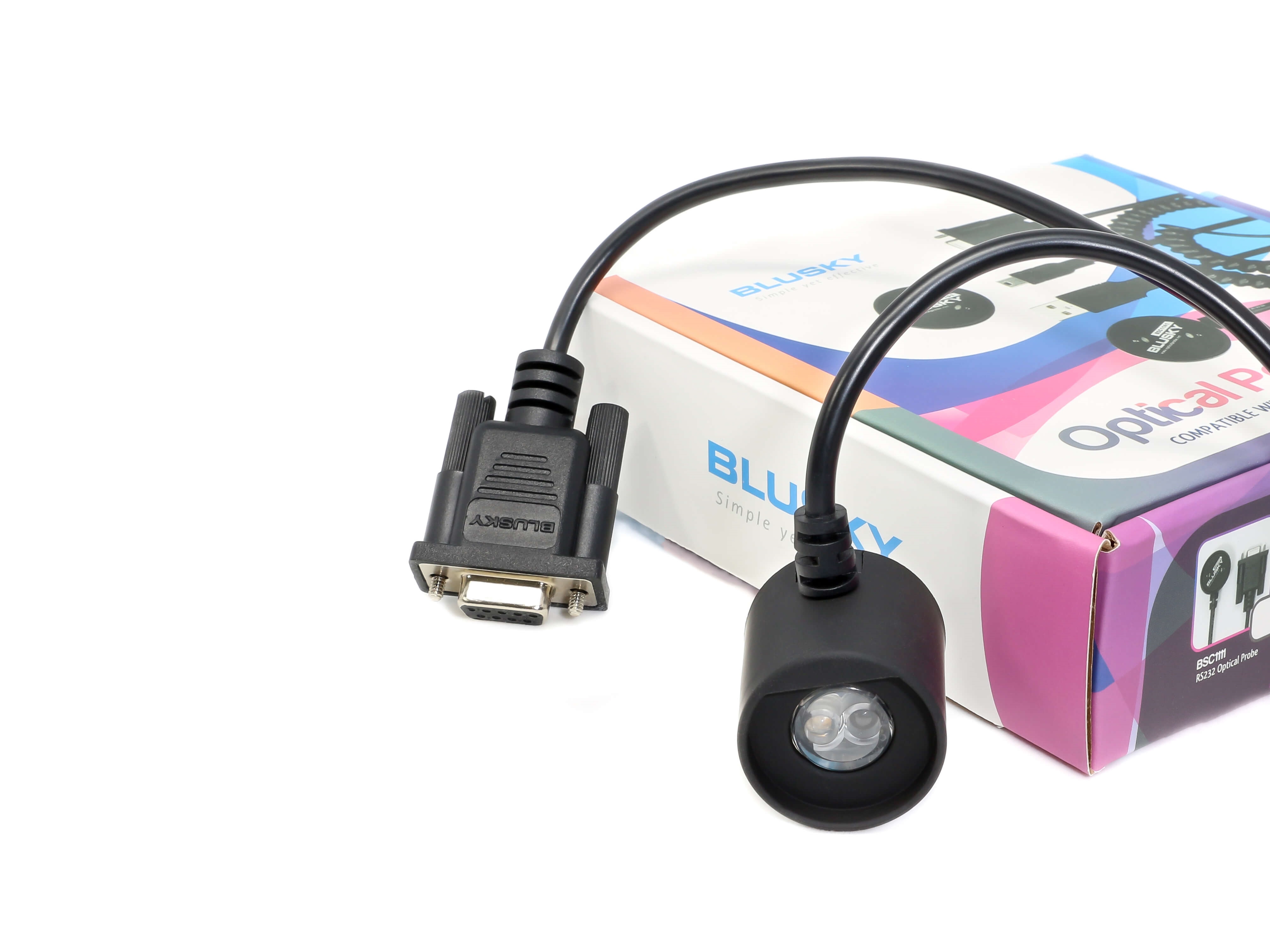

BSC1211 Foto

BSC1211 Dimensions

pin diagram female
