IEC 62056-21
N36 Magnetic Force
Use Same Optical Probe for all IEC Meters
USB 2.0 Type A
As Virtual Serial Port
Fully Transparent Communication
2 mt. Cable Length

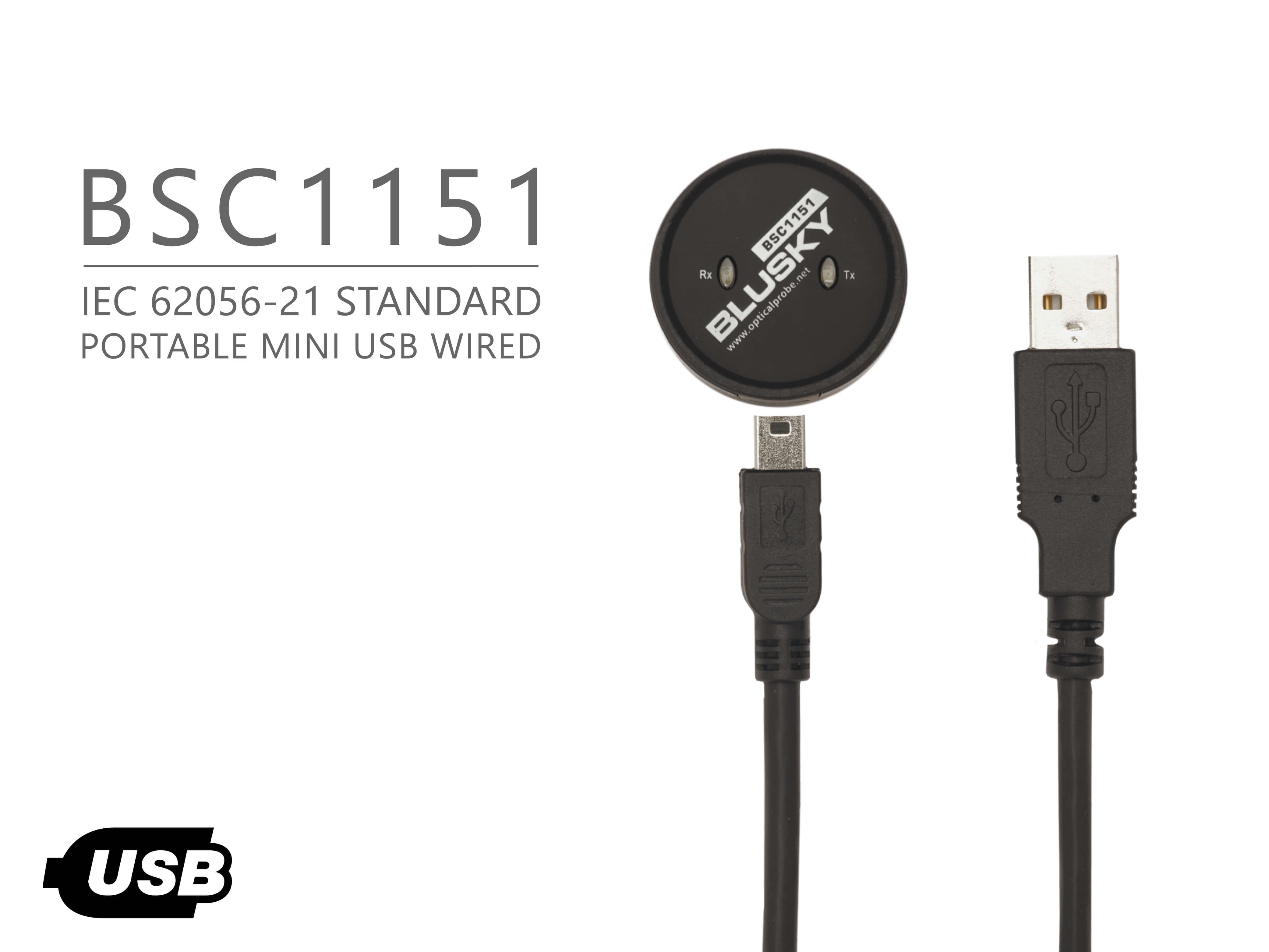

BSC1151

Immediate Delivery

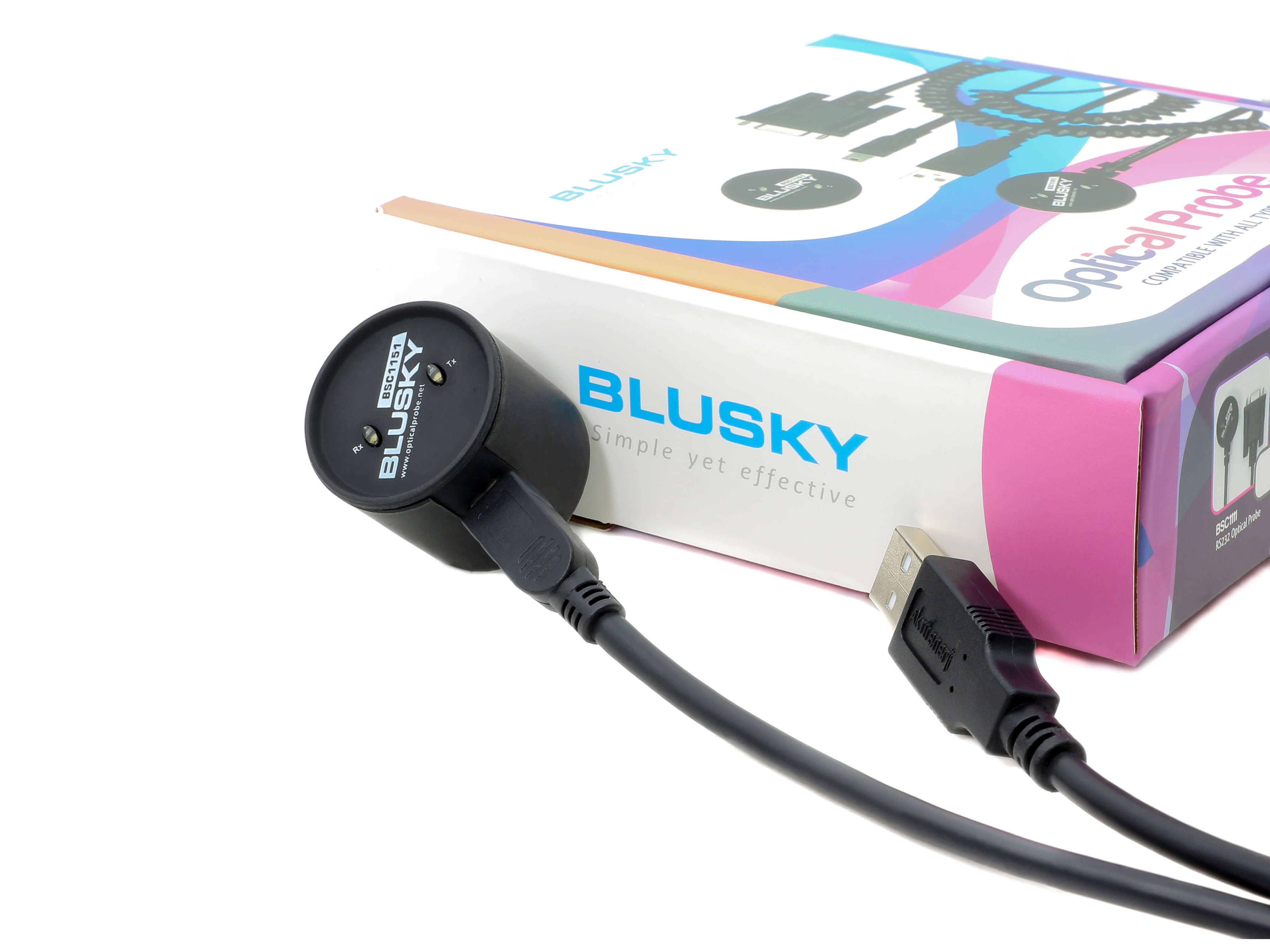

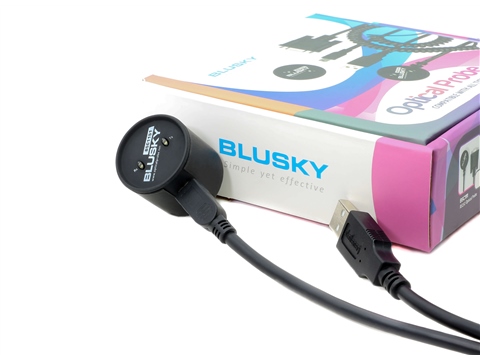

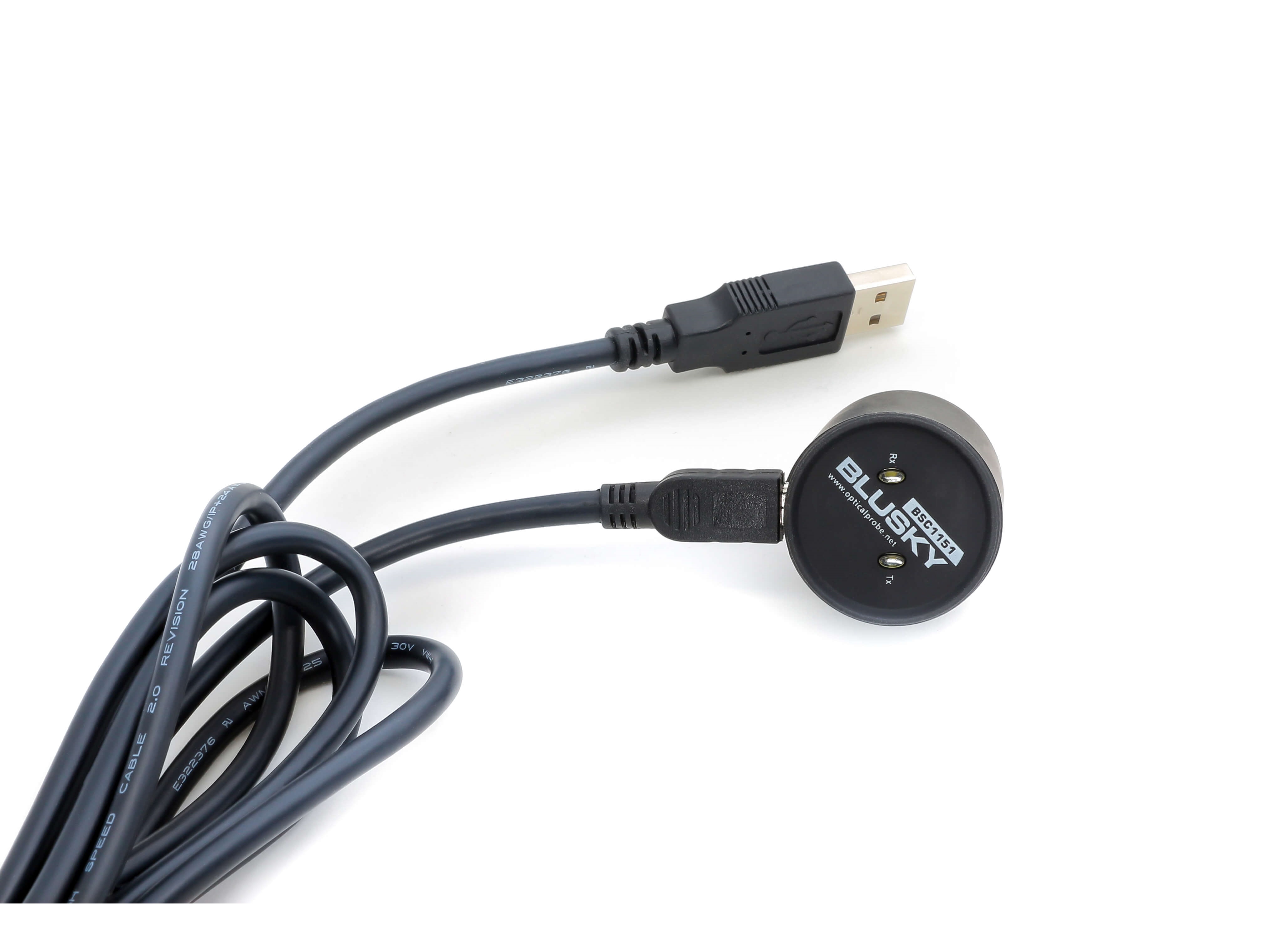

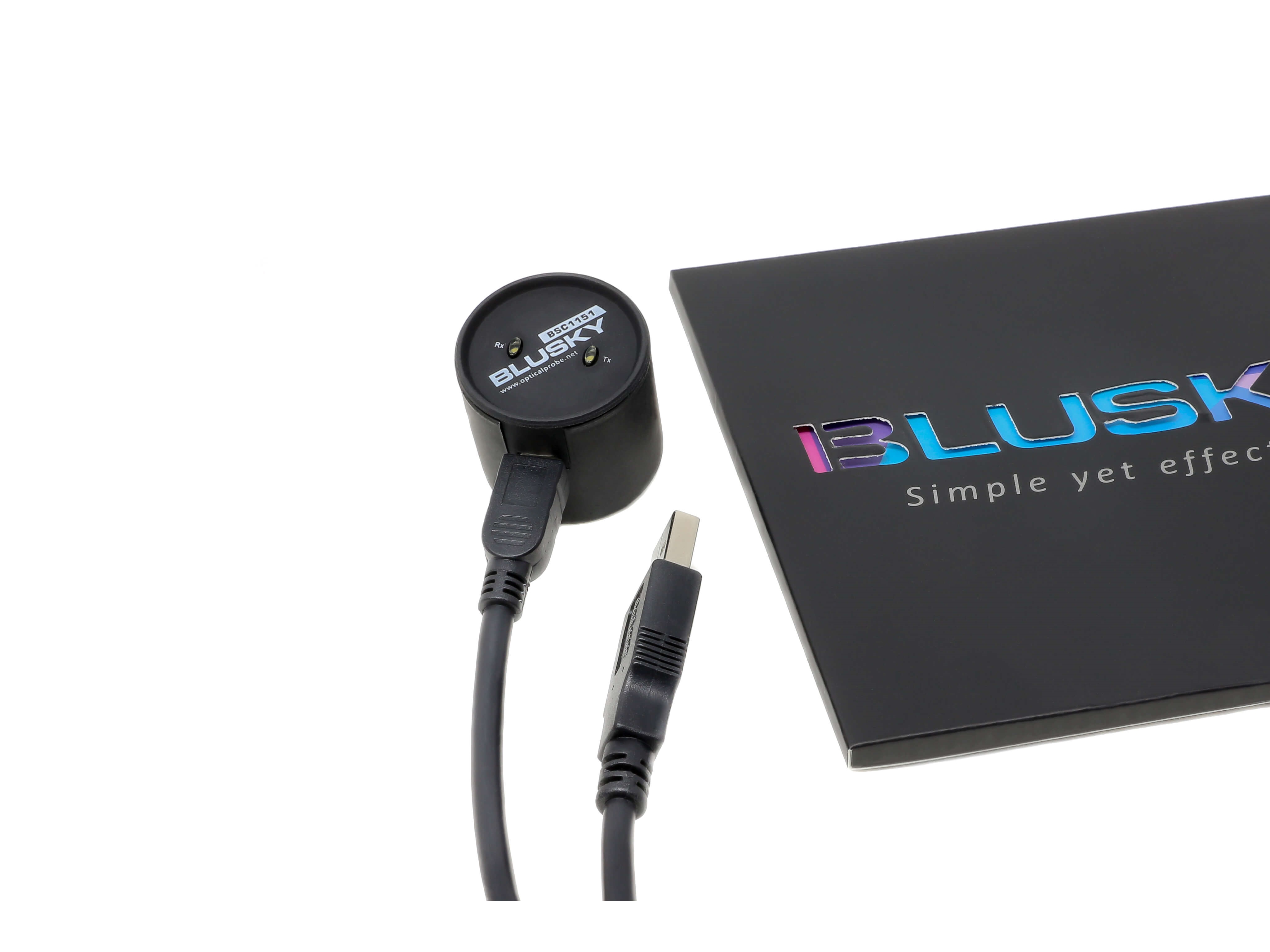

       BSC1151 Optical Probe has USB 2.0 electrical interface and compatible with IEC62056-21 standard. Approximately 2 mt. It has a removable cable. Optical Probe is suitable to read electricitiy meters closely with Laptop Computers, Handheld Terminals, Tablets and Smart Phones. It is use USB Type A on the computer side, Mini USB connector on the Optical Probe side. To use with Tablet and Smart Phones, you must order USB Type A to Micro USB adapters or Special cable. Our optical ports contain N36 or N38 magnets and are very well integrated with the meters. Optical Probe is powered through the USB ports on your computer or smart devices. Does not require an external power supply. With our quality sensors and amplifiers, you can read almost all electricity meters of the relevant standard. Our product is plug and play. When you plug in your computer or smart devices, a virtual port is created and you can communicate transparently through this port. You can download the hardware drivers for the different operating systems in the Files Tab.

Power Supply



 : 5VDC (Powered from USB, no external power required)

Weight



 : 125 Gr. (210 Gr. Including box contents)

Diameter



 : Optical Side: 31.3 mm.  /  Top Cover Side: 32,5 mm.

Communication Interface



 : USB 2.0 / Computer side TYPE A, Optical Probe side Mini USB

Wavelength



 : ~ 900 nm.

Magnetic Holding Force



 : N36 ( N38 Opt. )

Supported Custom Standards



 : IEC 62056-21 (formerly IEC 1107)

Indicators

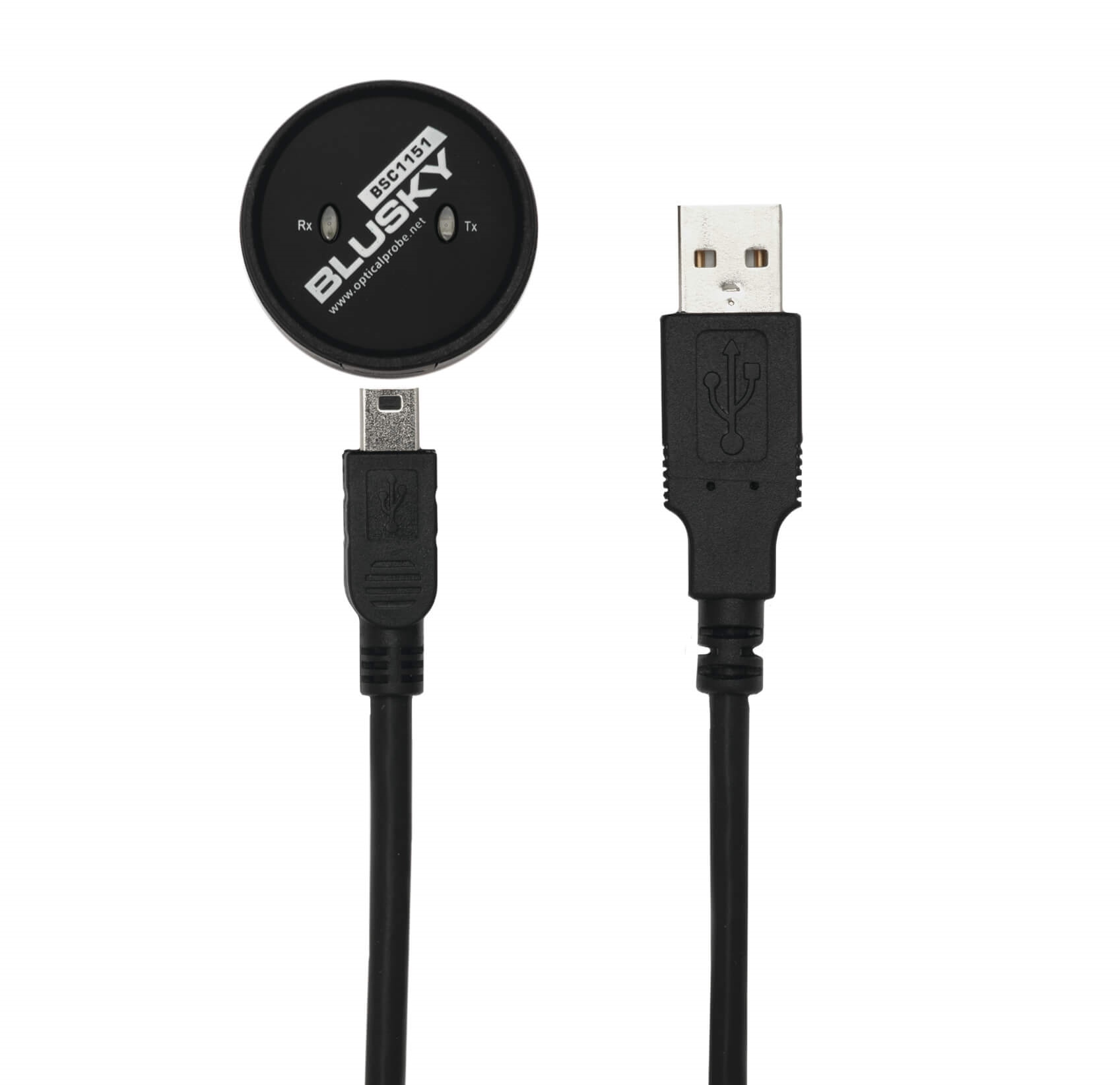

 : You can track the communication with 2 LEDs

Height



 : Total: 29,5 mm.  /  Up to the cable: 12,5 mm.

Cable Length

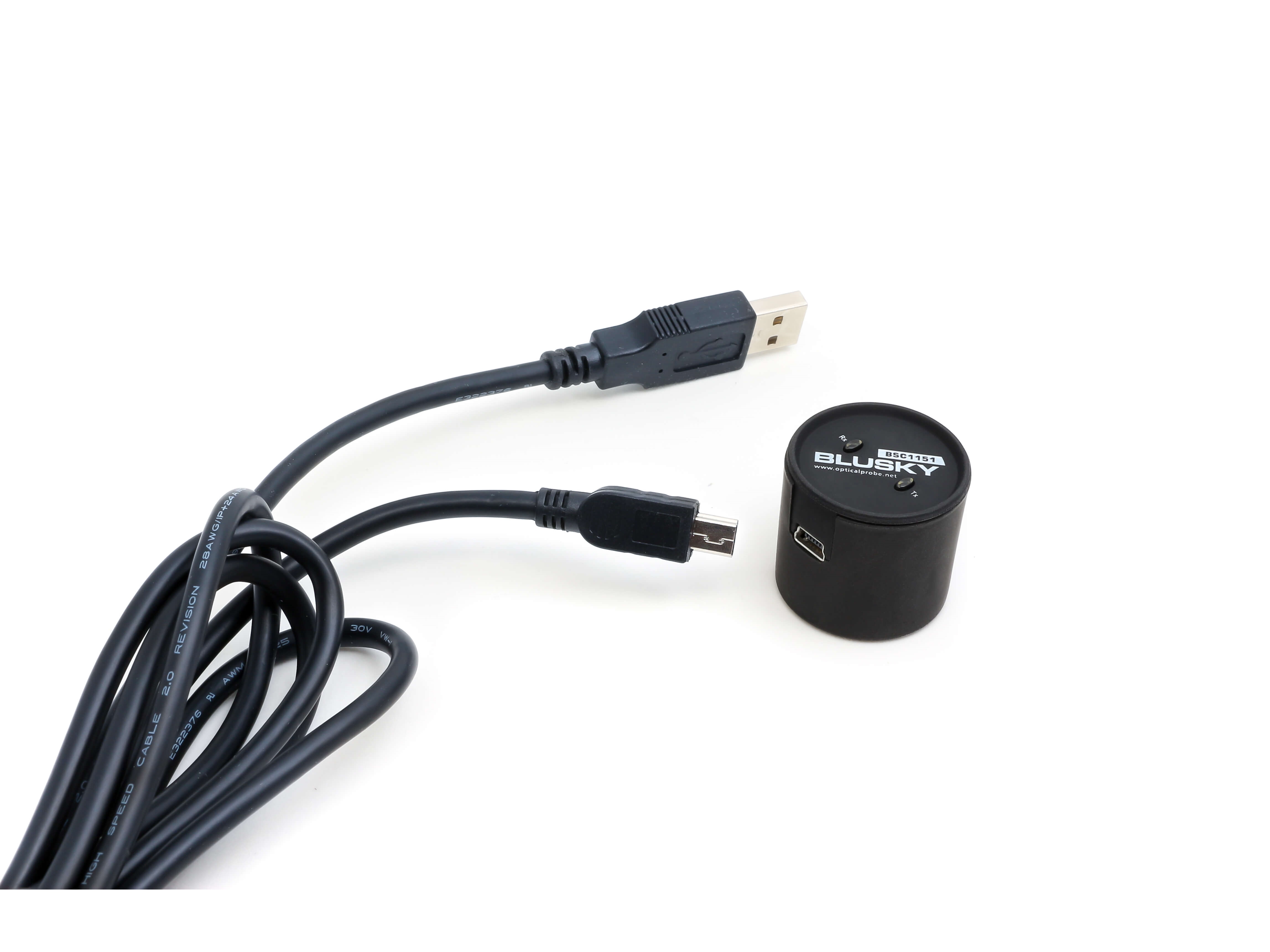

 : ~2 mt. / Removable Cable

Max. Communication Speed



 : 38.400 bps

Click the link on the right to download the product brochure.

Product Brochure

Click the link on the right to download 64 bit Windows driver.

64 Bit Windows Driver

Click the link on the right to download 32 bit Windows driver.

32 Bit Windows Driver

In order to prevent mistakes that may arise from reading of electricity meters by eye;

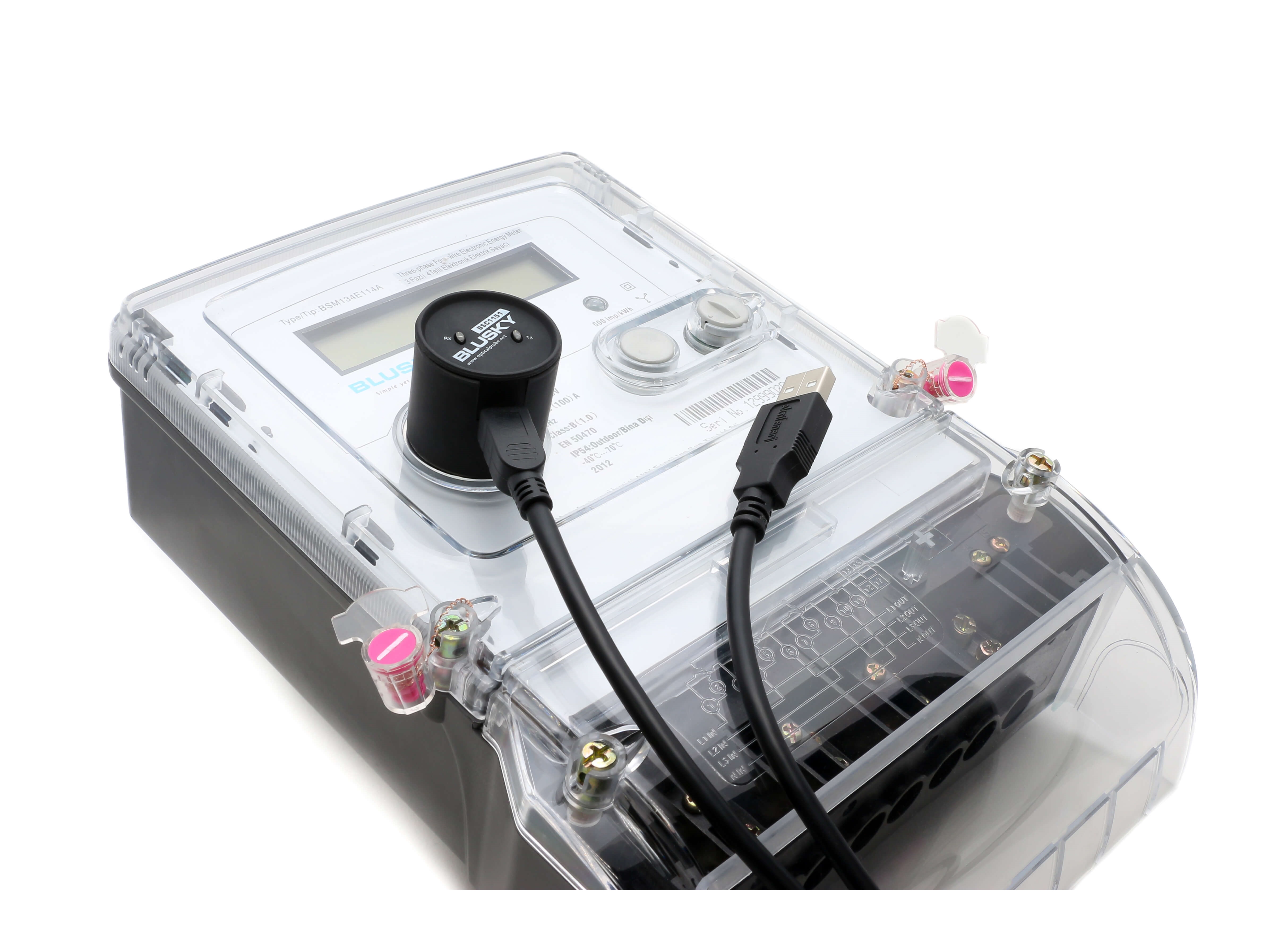

  • It is used to read the index and load profile values of IEC62056-21 standard electricity meters by laptop computer
  • Used to read electricity meters with handheld terminals
  • It is used to read electricity meters with Tablet or Smart Phones. (With USB Type A <> Micro USB Adapter or Special cable)
  • Creates an interface for remotely reading meters that do not have a communication port
  • It is used to make settings of the electricity meters with appropriate software
  • Used for measuring, testing and calibration in Electricity MeterTest Tables
  • Can be used in prepayment meter systems
  • Used in campus type areas such as Shopping Centers and Organized Industrial Zone
  • Used in areas where energy stakeholders such as collective housing and hotels are more common

           BSC1151, Optical Probe has USB 2.0 electrical interface and compatible with IEC62056-21 standard. It has a approximately 2 mt removable cable to provide ease of carry. Optical Probe is suitable to read electricitiy meters closely with Laptop Computers, Handheld Terminals, Tablets and Smart Phones. It is use USB Type A on the computer side, Mini USB connector on the Optical Probe side. To use with Tablet and Smart Phones, you must order USB Type A to Micro USB adapters or Special cable.

          Our optical ports contain N36 or N38 magnets and are very well integrated with the meters. Optical Probe is powered through the USB ports on your computer or smart devices. Does not require an external power supply. With our quality sensors and amplifiers, you can read almost all electricity meters of the relevant standard. Our product is plug and play. When you plug in your computer or smart devices, a virtual port is created and you can communicate transparently through this port. You can download the hardware drivers for the different operating systems in the Files Tab.

Buy Now

BSC1151 p1

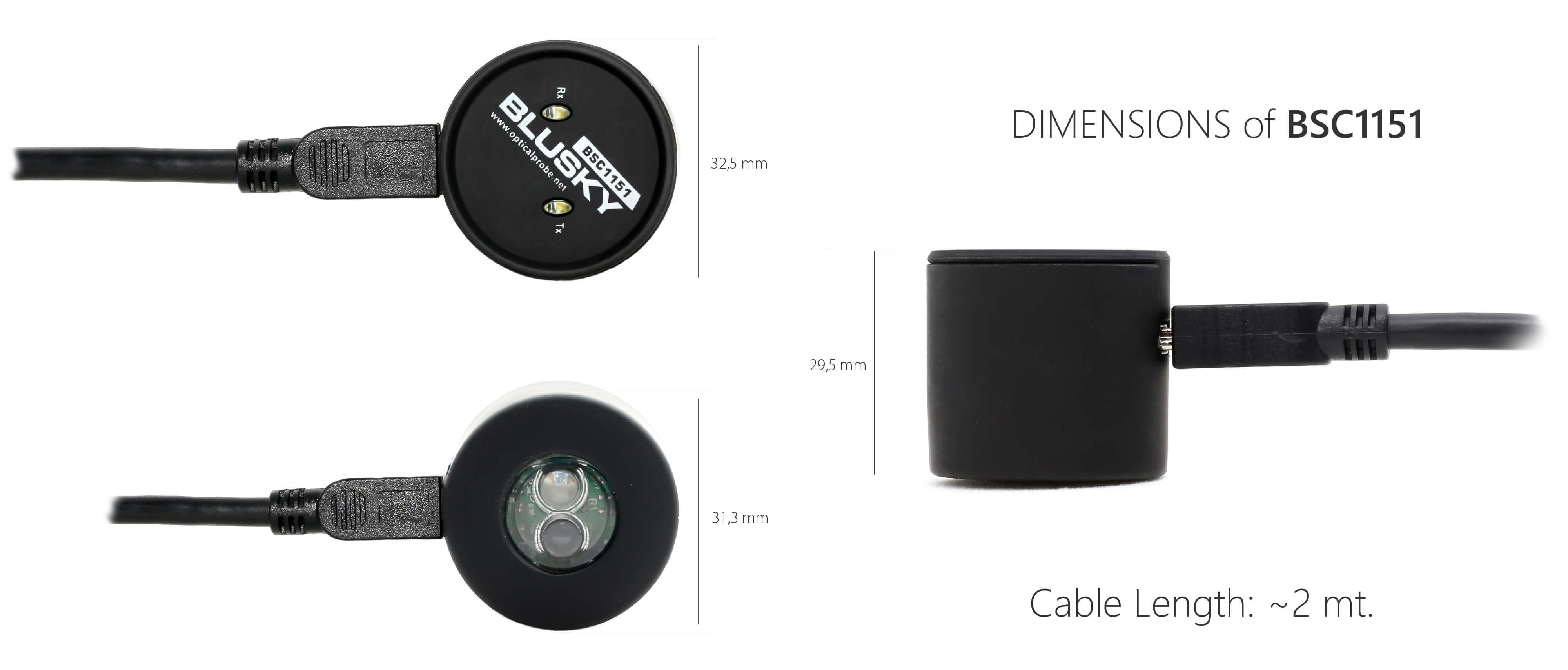

BSC1151 Dimensions
