IEC 62056-21
N36 Magnetic Force
3 mt. Cable Length
Use Same Optical Probe for all IEC Meters
As Virtual Serial Port
Fully Transparent Communication

BSC1141

Immediate Delivery

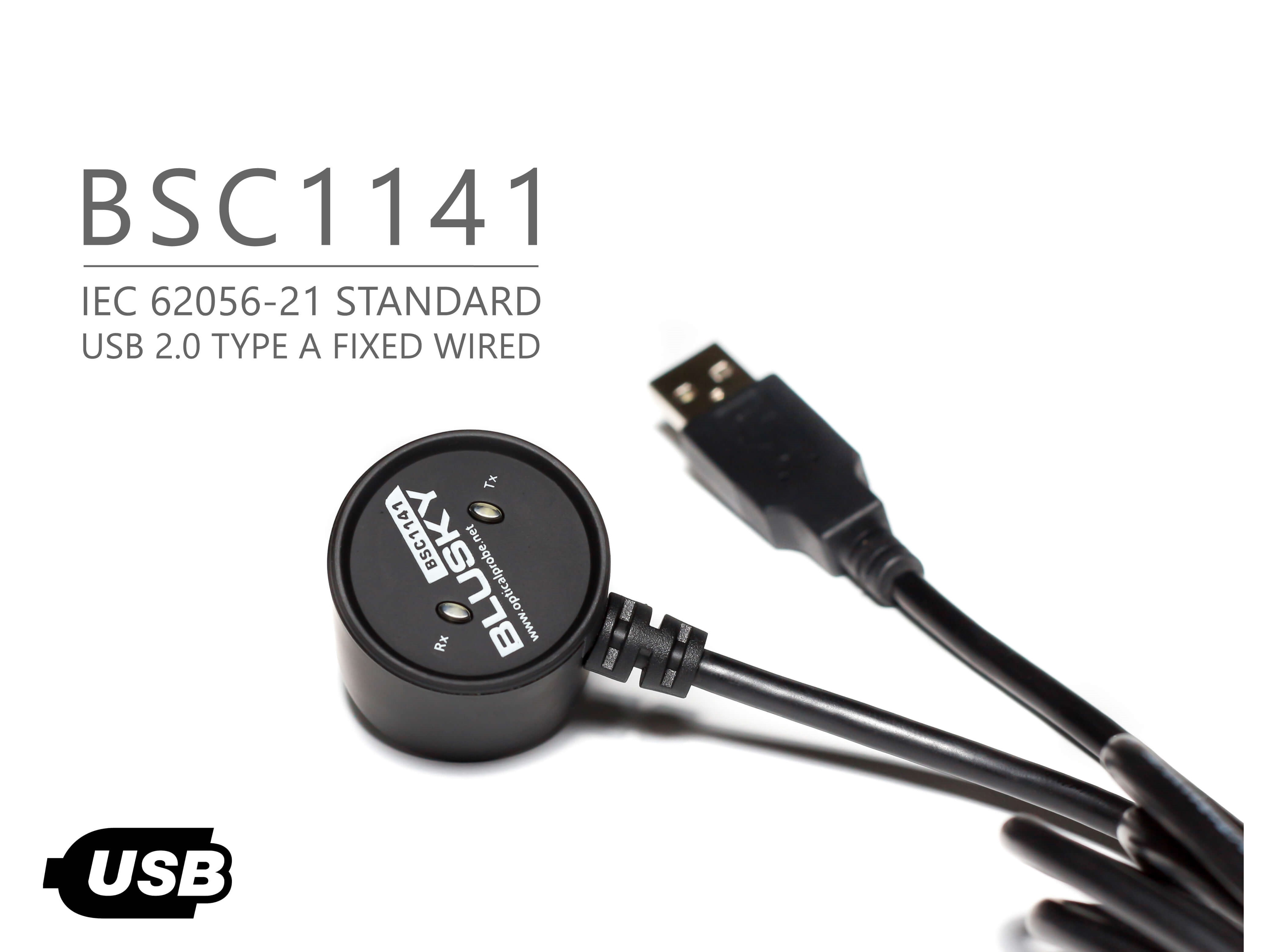

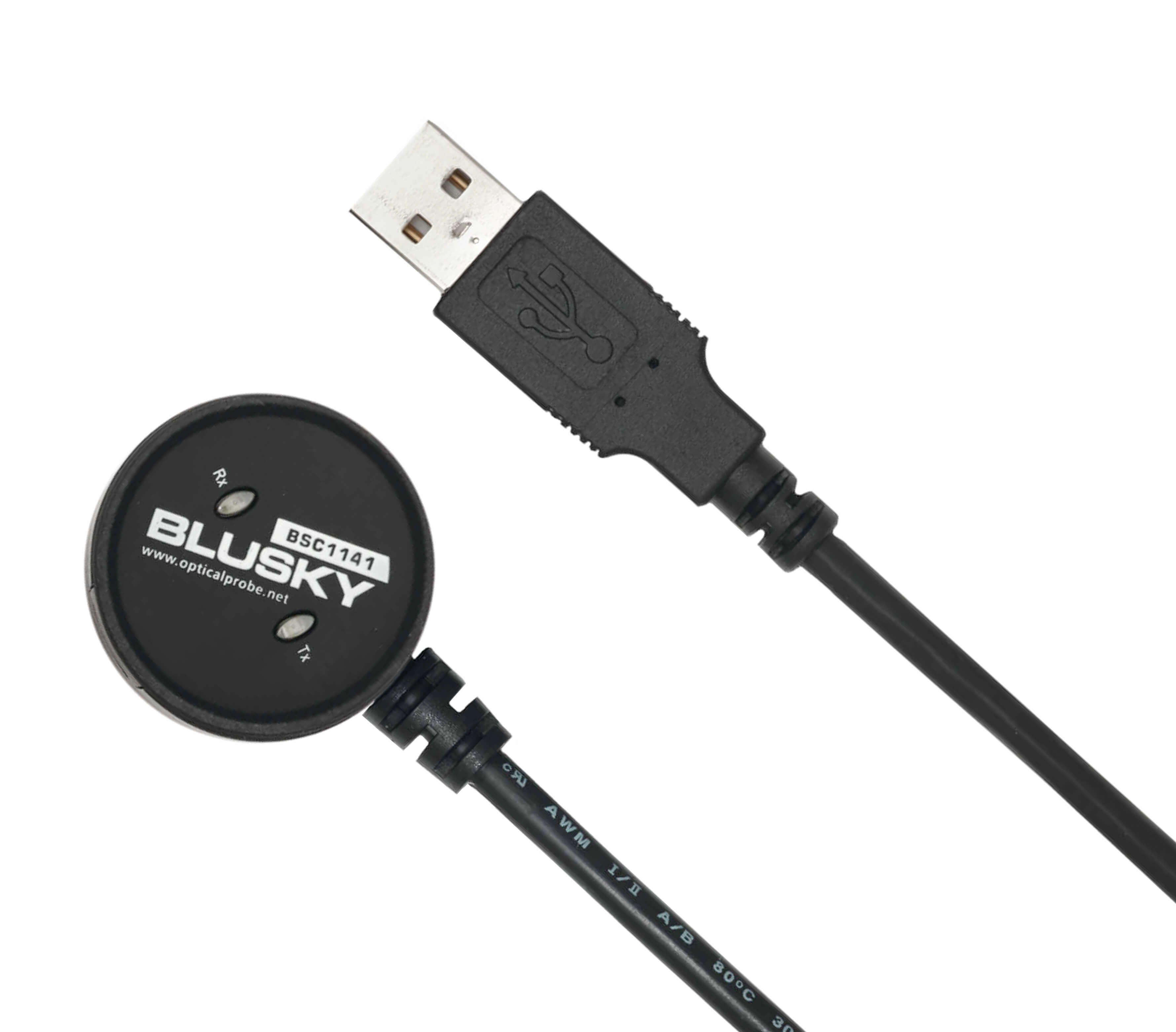

      BSC1141 Optical Probe has USB 2.0 electrical interface and compatible with IEC62056-21 standard. Optical Probe is suitable to read electricitiy meters closely with Laptop Computers, Handheld Terminals, Tablets and Smart Phones. Uses a USB TYPE connector. You should use with USB Type A to Micro USB adapters for use with Tablet and Smart Phones because it is a fixed wired product . These adapters can also be obtained from our company. Our optical ports contain N36 or N38 magnets and are very well integrated with the meters. Optical Probe is powered through the USB ports on your computer or smart devices. Does not require an external power supply. With our quality sensors and amplifiers, you can read almost all electricity meters of the relevant standard. Our product is plug and play. You can download the hardware drivers for the different operating systems in the Files Tab below.

Power Supply



 : 5VDC (Powered from USB, no external power required)

Weight



 : 125 Gr. (210 Gr. Including box contents)

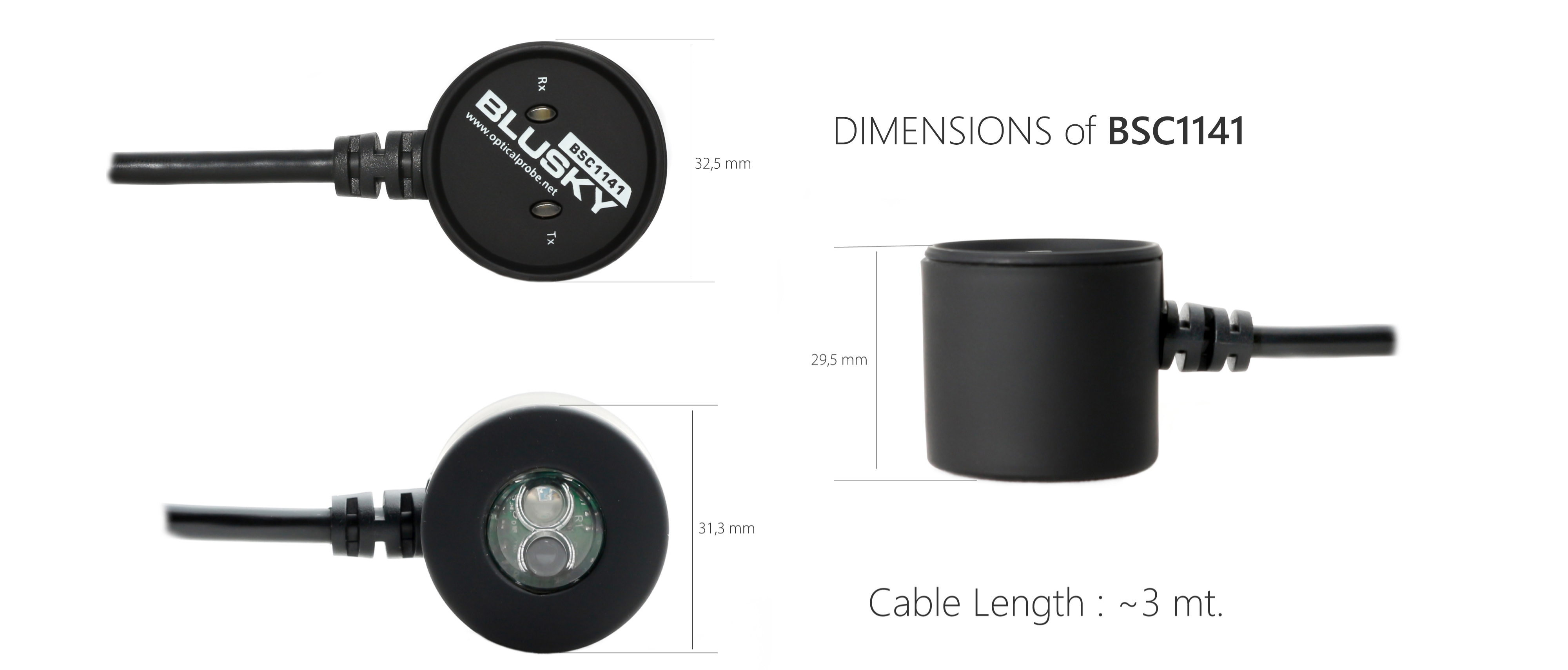

Diameter



 : Optical Side: 31.3 mm.  /  Top Cover Side: 32,5 mm.

Communication Interface



 : USB 2.0 / TYPE A

Wavelength



 : ~ 900 nm.

Magnetic Holding Force



 : N36 ( N38 Opt. )

Supported Custom Standards



 : IEC 62056-21 (formerly IEC 1107)

Indicators



 : You can track the communication with 2 LEDs

Height



 : Total: 29,5 mm.  /  Up to the cable: 12,5 mm.

Cable Length



 : ~3 mt.

Max. Communication Speed



 : 38.400 bps

Click the link on the right to download the product brochure.

Product Brochure

Click the link on the right to download 64 bit Windows driver.

64 Bit Windows Driver

Click the link on the right to download 32 bit Windows driver.

32 Bit Windows Driver

In order to prevent mistakes that may arise from reading of electricity meters by eye;

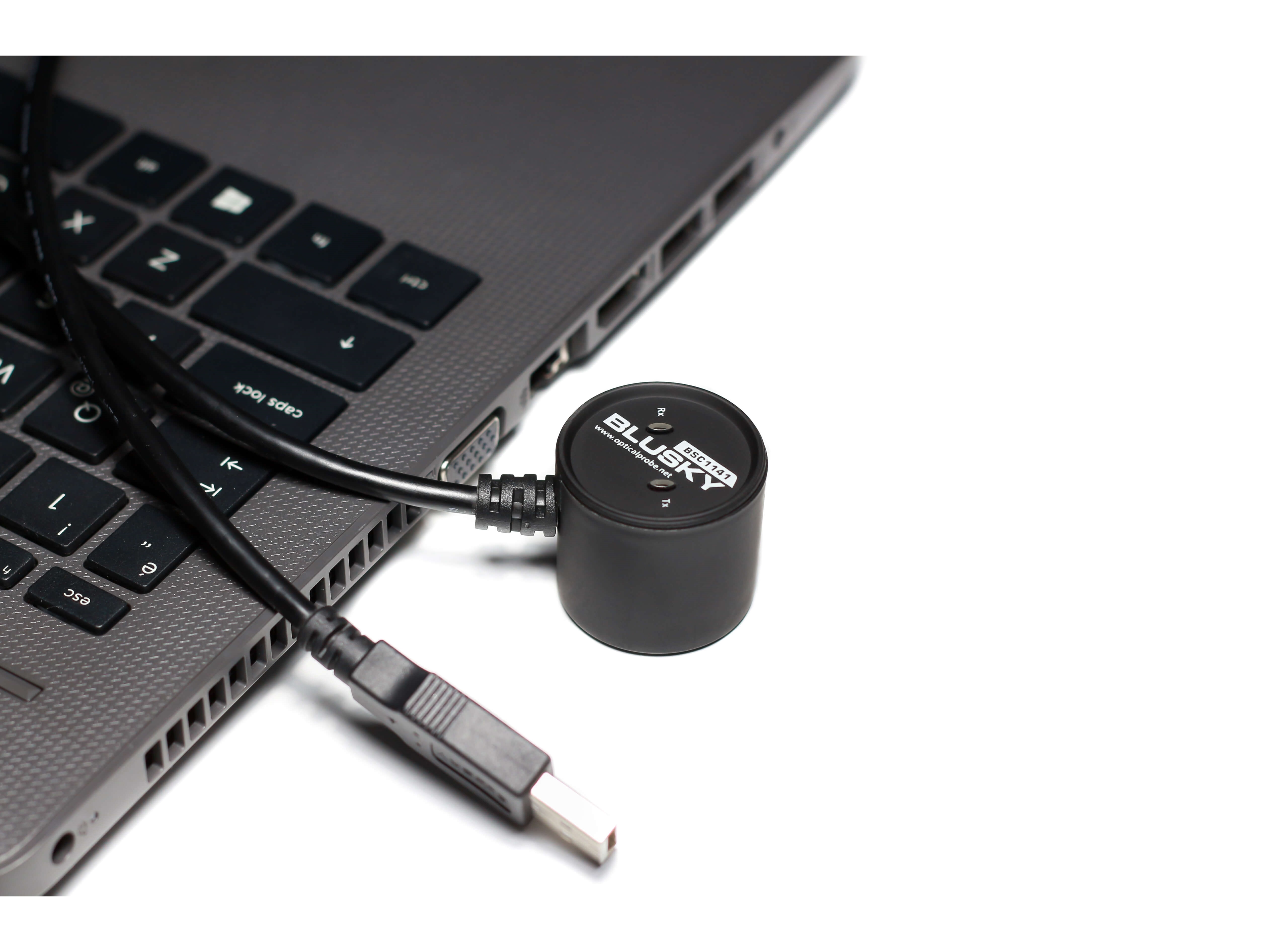

  • It is used to read the index and load profile values of IEC62056-21 standard electricity meters by laptop computer
  • Used to read electricity meters with handheld terminals

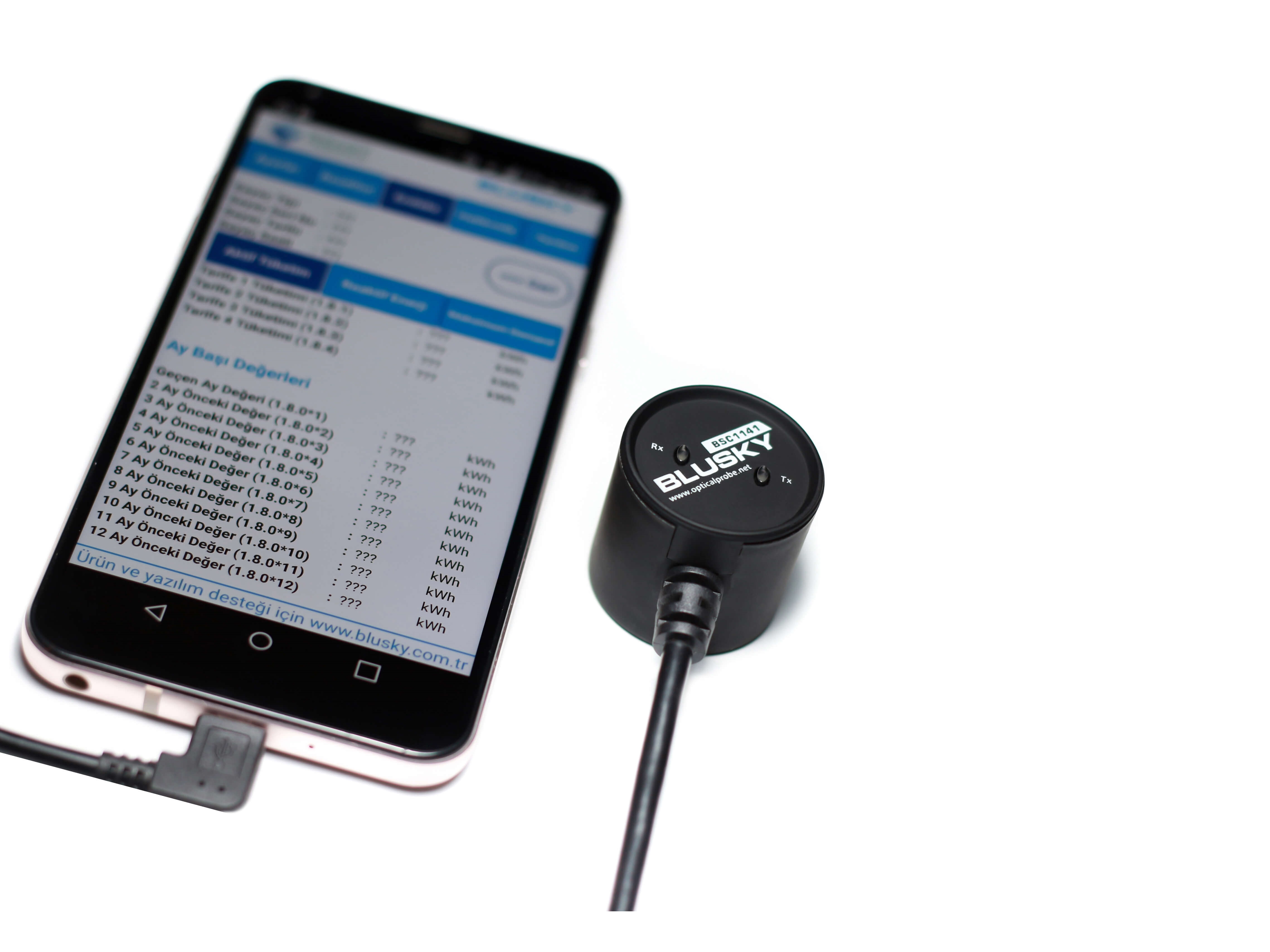

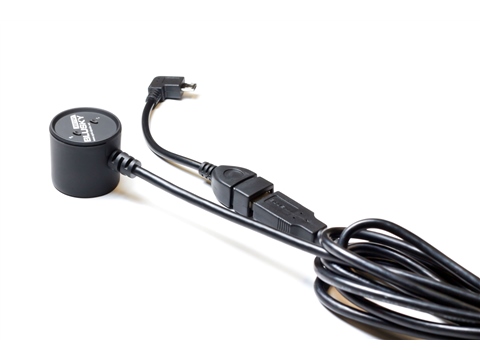

  • It is used to read electricity meters with Tablet or Smart Phones. (With USB Type A <> Micro USB Adapter)
  • Creates an interface for remotely reading meters that do not have a communication port
  • It is used to make settings of the electricity meters with appropriate software
  • Used for measuring, testing and calibration in Electricity MeterTest Tables
  • Can be used in prepayment meter systems
  • Used in campus type areas such as Shopping Centers and Organized Industrial Zone
  • Used in areas where energy stakeholders such as collective housing and hotels are more common

      BSC1141 Optical Probe has USB 2.0 electrical interface and compatible with IEC62056-21 standard. Approximately 3 mt. It has a fixed cable. Optical Probe is suitable to read electricitiy meters closely with Laptop Computers, Handheld Terminals, Tablets and Smart Phones. Uses a USB TYPE connector. You should use with USB Type A to Micro USB adapters for use with Tablet and Smart Phones because it is a fixed wired product . These adapters can also be obtained from our company.

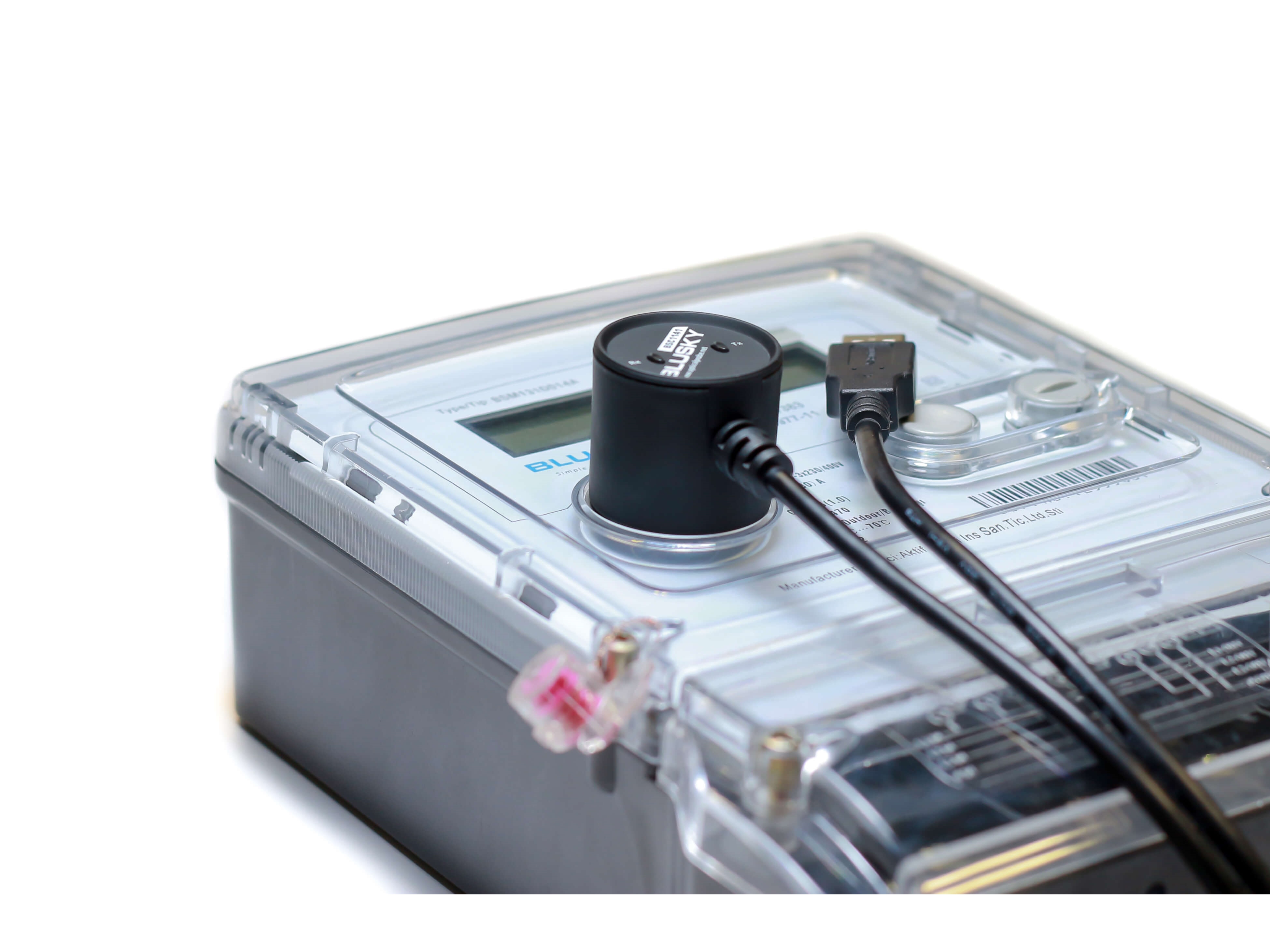

      Our optical ports contain N36 or N38 magnets and are very well integrated with the meters. Optical Probe is powered through the USB ports on your computer or smart devices. Does not require an external power supply. With our quality sensors and amplifiers, you can read almost all electricity meters of the relevant standard. Our product is plug and play. When you plug in your computer or smart devices, a virtual port is created and you can communicate transparently through this port. You can download the hardware drivers for the different operating systems in the Files Tab.
