IEC 62056-21
Bluetooth
600 mA Li-Po Battery
As Virtual Serial Port
N36 Magnetic Force
Use Same Optical Probe for all IEC Meters
Led Flashlight
Silicone Protector
Starting Meter Reading with Button

BSC1161

Immediate Delivery

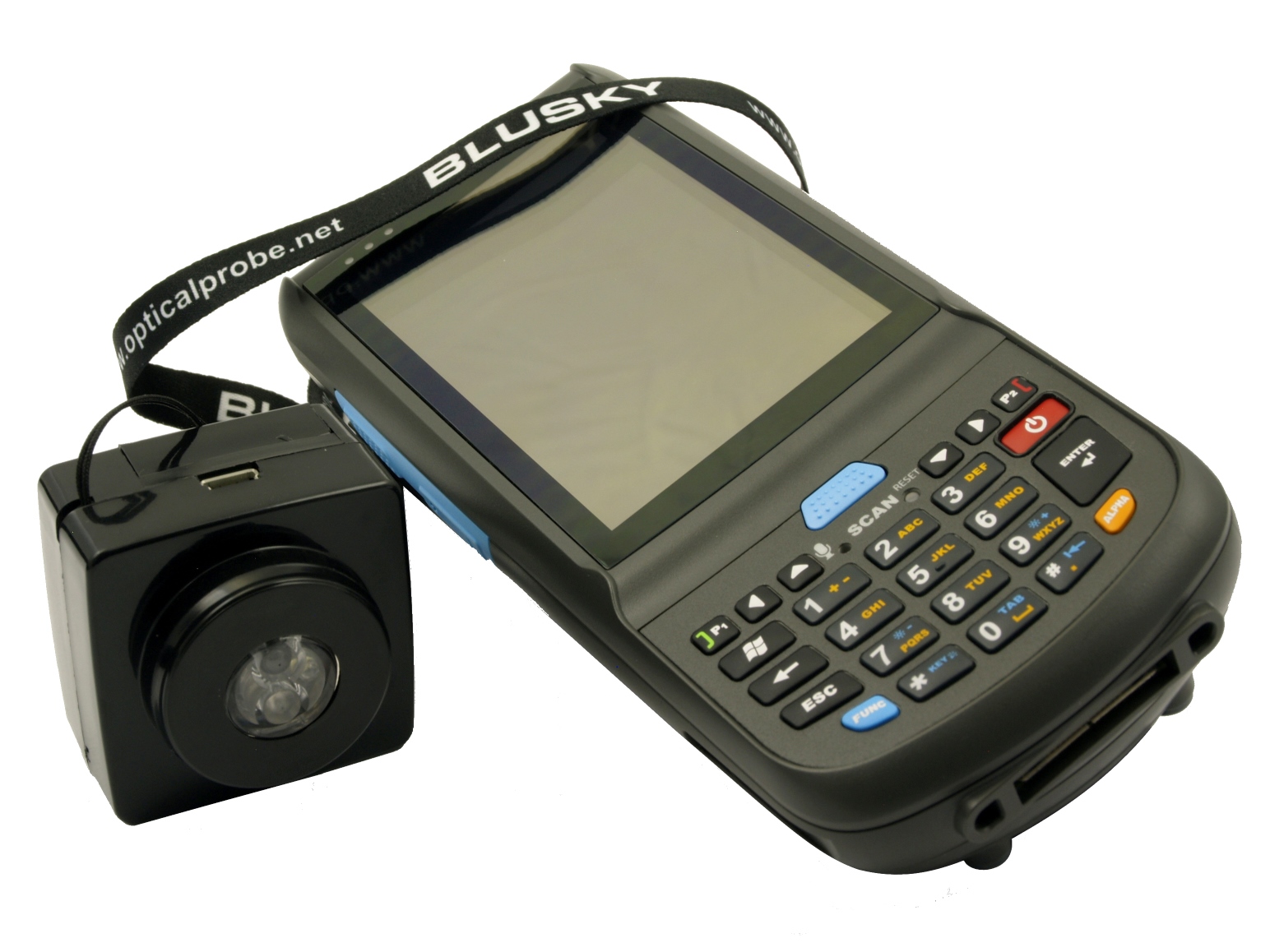

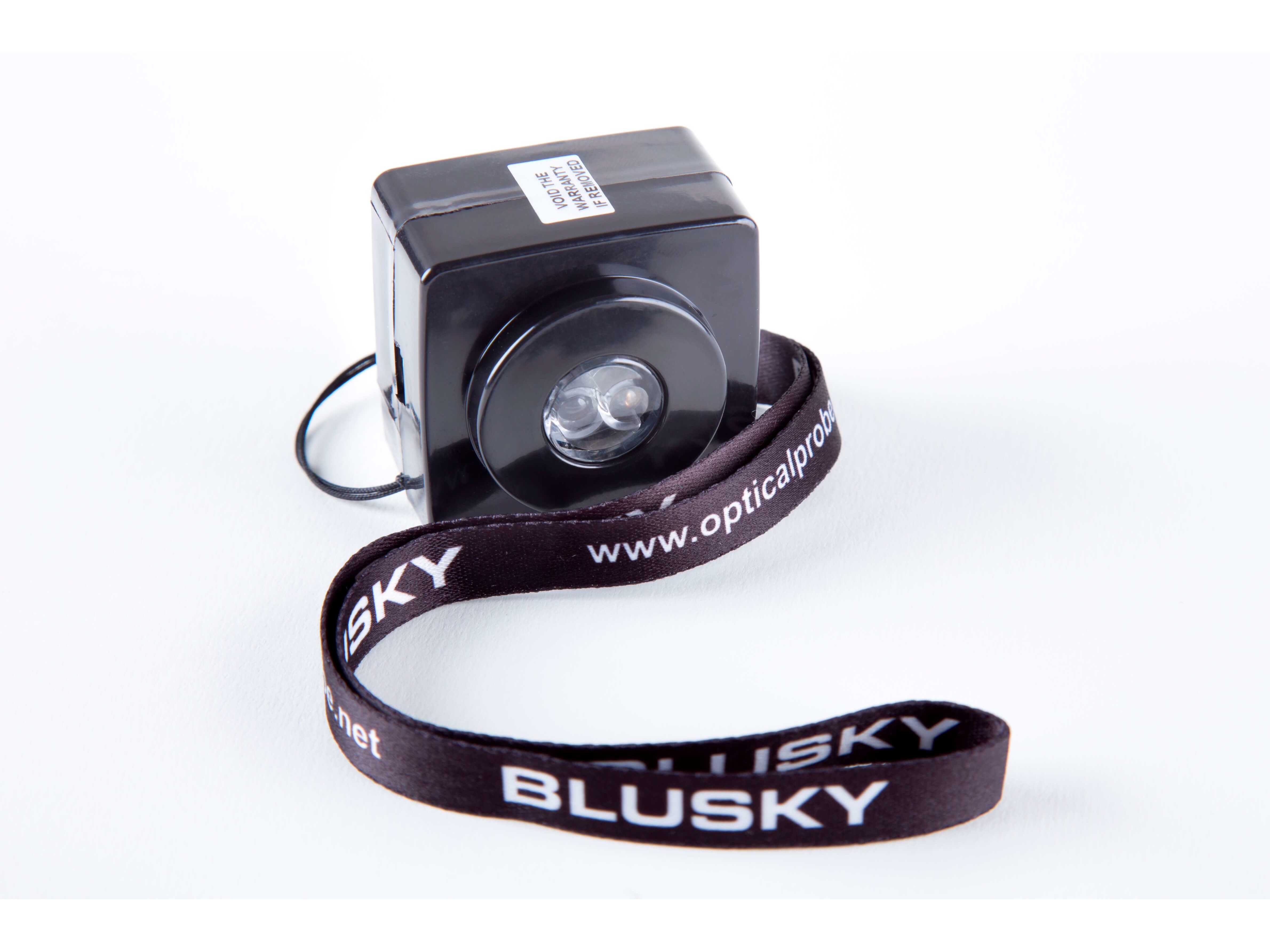

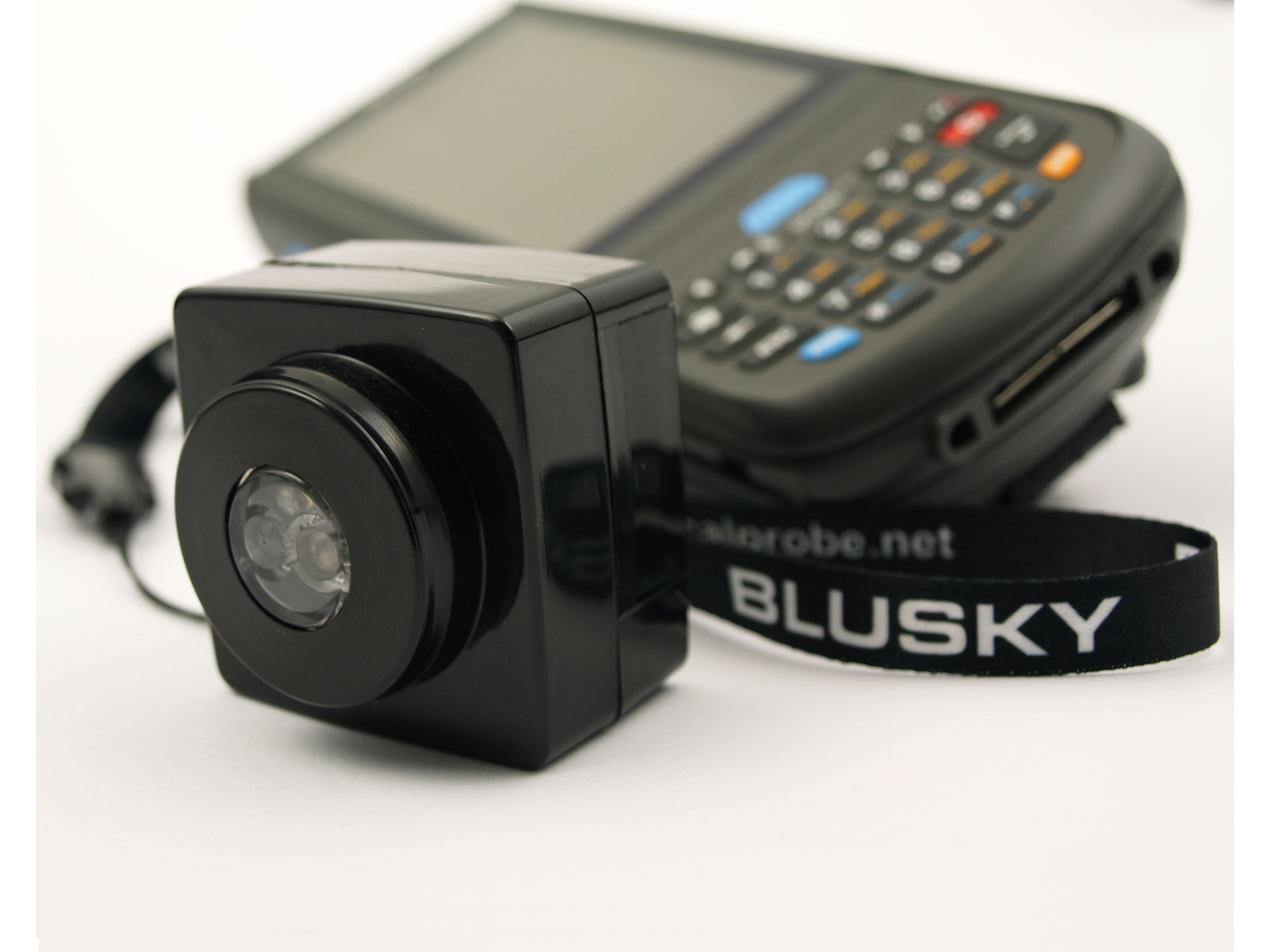

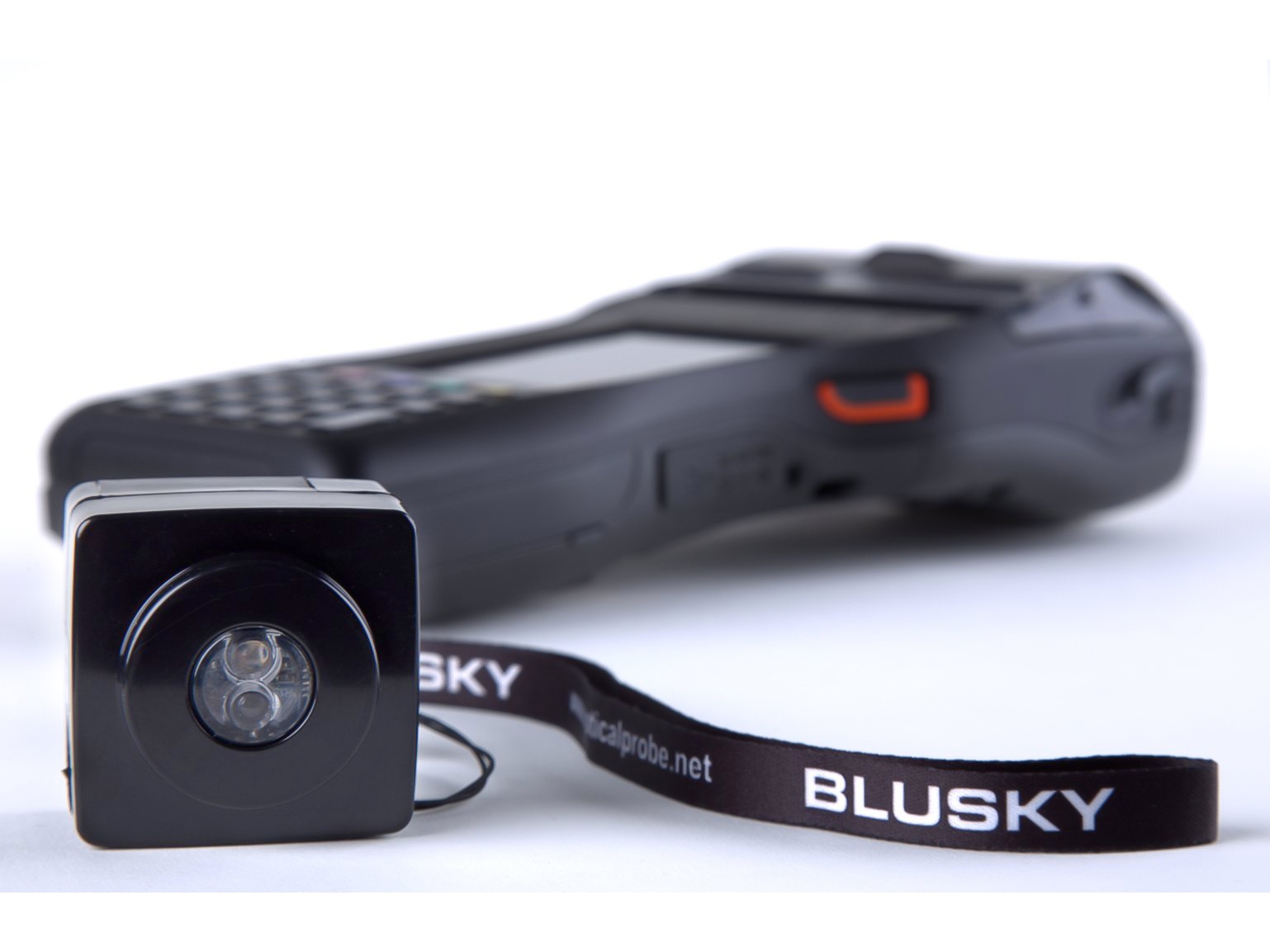

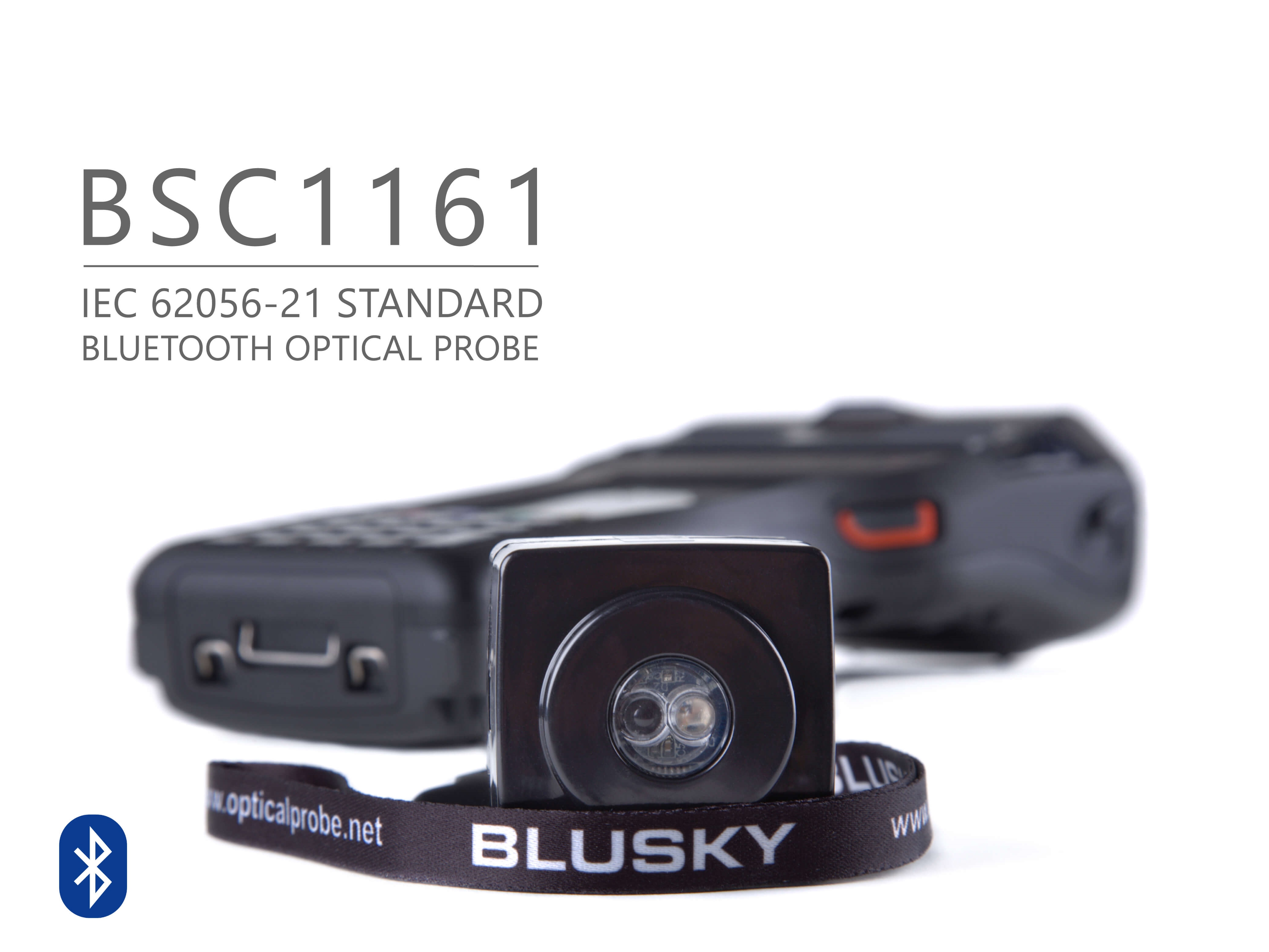

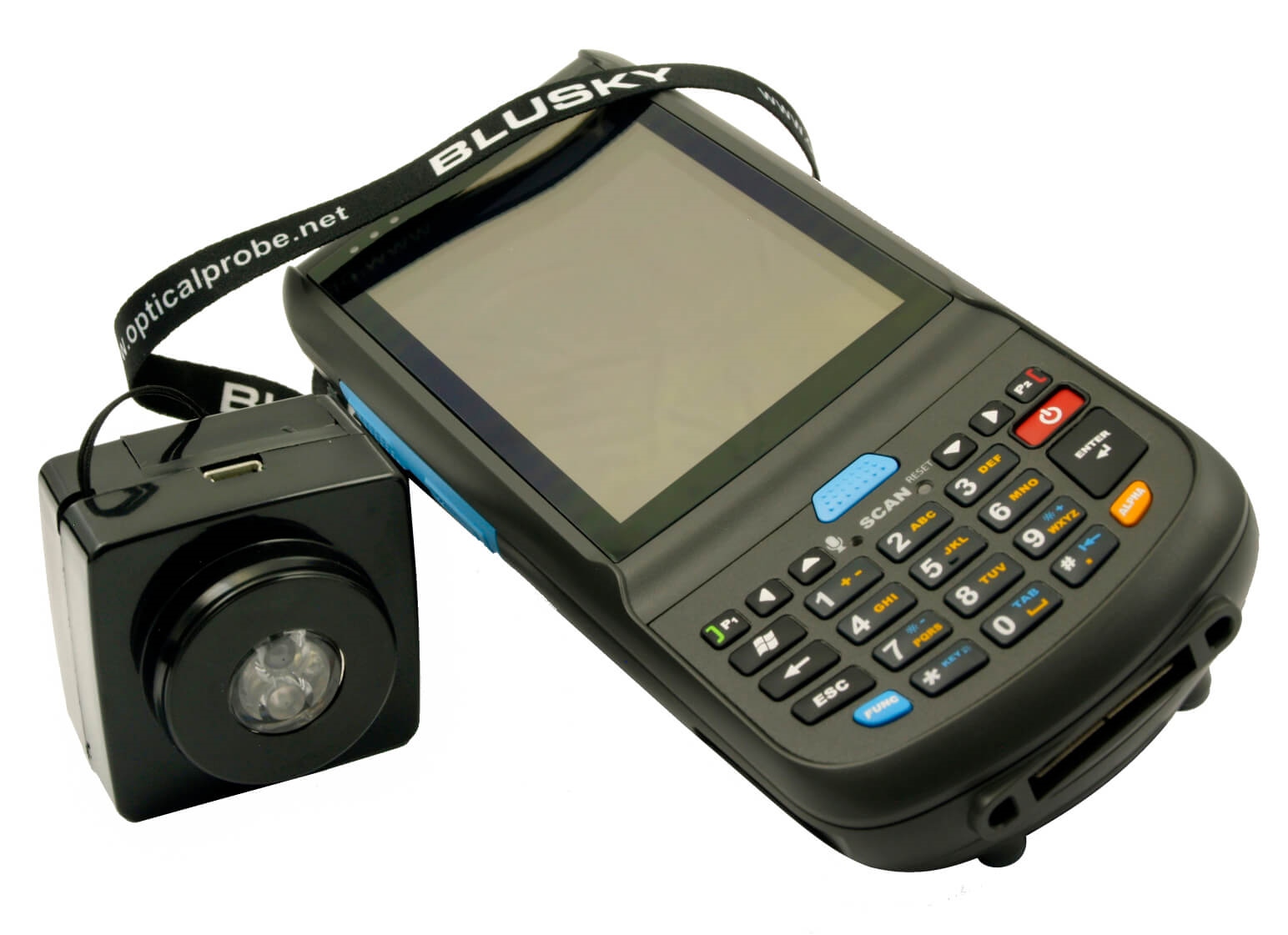

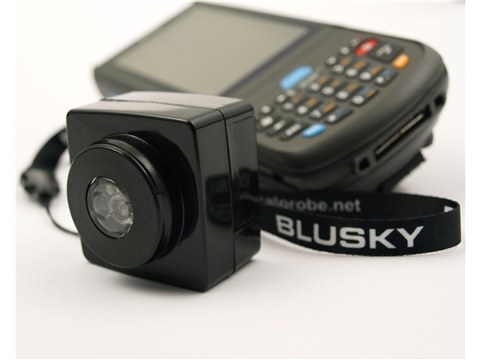

            BSC1161 is a wireless optical probe compliant with Bluetooth 2.1 + EDR in IEC62056-21 standard. It uses to read closely the electricity meters with portable computers, hand held terminals, tablets and smart phones. You can use it with Windows, Windows Mobile, Android and IOS operating systems. BSC1161 creates a virtual com port on your portable devices. You can easily start using it with the software that will be prepared for it. Our optical ports contain N36 or N38 magnets and are very well integrate with the electricity meters. Thanks to a built-in battery you can read 3000 to 4000 meters with a one charge. You can easily charge the optical probe with your computer or 1A / 5V power supply. With our quality sensors and amplifiers, you can read almost all electricity meters of the relevant standard. It provides transparent communication and IEC62056-21 Mode C solution together. It automatically switches the communication speed according to IEC62056-21 Mode C standard. It is resistant to falling thanks to external silicone protection. It helps you reach your electricity meter with led torch feature in dark working areas . The wristband prevents the optical probe from falling from your hand.

Battery Feature



 :  600mA / 3.7V LiPo Battery. 3000 Meters Reading Capacity with Single Charge

Weight



 : 70 Gr. (150 Gr. Including box contents)

Diameter



 : 31 mm

Communication Interface



 : Bluetooth 2.1 + EDR

Max. Communication Speed



 : Bluetooth Link 9600 bps / Optical Link 19.200 bps

Buttons



: Control with single button (Power, Led Flashlight, Meter Reading Starting)

Battery Charging



 : It can be charge via mini USB cable. 100mA - 500mA power supply is enough to standard charging.

Supported Custom Standards



 : IEC 62056-21 (formerly IEC 1107)

Indicators



: 3 color single led (Power, Warning and Communication Notification)

Height



 : 33 mm

Wavelength



 : ~ 900 nm

Magnetic Holding Force



 : N36 ( N38 Optional )

Led Flashlight



 : White Led, Auto Power Off

Click the link on the right to download the product brochure.

Product Brochure
  • Used to read the index and load profile values of IEC62056-21 standard electricity meters by Computer
  • Used to read electricity meters with Handheld Terminals
  • Used for closely reading of electricity meters with Smart Phones and Tablets
  • It is used to make settings of the electricity meters with appropriate softwares
  • Used for measuring, testing and calibration on Electricity Meter Test Tables
  • Used in campus type areas such as Shopping Centers and Organized Industrial Zone
  • Used in areas where energy stakeholders such as collective housing and hotels are more common

       BSC1161 is a wireless optical probe compliant with Bluetooth 2.1 + EDR in IEC62056-21 standard. It uses to read closely the electricity meters with portable computers, hand held terminals, tablets and smart phones. You can use it with Windows, Windows Mobile, Android and IOS operating systems. BSC1161 creates a virtual com port on your portable devices. You can easily start using it with the software that will be prepared for it. Our optical ports contain N36 or N38 magnets and are very well integrate with the electricity meters. Thanks to a built-in battery you can read 3000 to 4000 meters with a one charge.  With our quality sensors and amplifiers, you can read almost all electricity meters of the relevant standard. It provides transparent communication and IEC62056-21 Mode C solution together.  It is resistant to falling thanks to external silicone protection.
